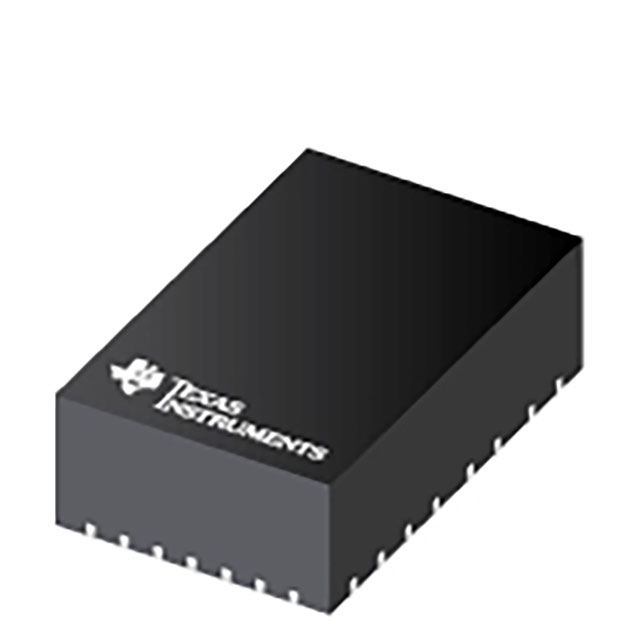

TPSM63603E Series
36-V, 3-A step-down power module in small 4-mm x 6-mm x 1.8-mm with -55°C extended temperature range
Manufacturer: Texas Instruments
Catalog
36-V, 3-A step-down power module in small 4-mm x 6-mm x 1.8-mm with -55°C extended temperature range
Key Features
• Versatile synchronous buck DC/DC moduleIntegrated MOSFETs, inductor, and controllerWide input voltage range of 3 V to 36 VAdjustable output voltage from 1 V to 16 V4-mm × 6-mm × 1.8-mm overmolded package–55°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHz using the RT pin or an external SYNC signalNegative output voltage capabilityUltra-high efficiency across the full load range93% peak efficiency at 12 VIN, 5 VOUT, 1 MHzExternal bias option for improved efficiencyShutdown quiescent current of 0.6 µA (typical)Ultra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingSpread-spectrum modulationResistor-adjustable switch-node slew rateConstant-frequency FPWM mode of operationMeets CISPR 11 and 32 class B emissionsSuitable for scalable power suppliesPin compatible with theTPSM63602(36 V, 2 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and VINUVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63603E with theWEBENCH Power DesignerVersatile synchronous buck DC/DC moduleIntegrated MOSFETs, inductor, and controllerWide input voltage range of 3 V to 36 VAdjustable output voltage from 1 V to 16 V4-mm × 6-mm × 1.8-mm overmolded package–55°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHz using the RT pin or an external SYNC signalNegative output voltage capabilityUltra-high efficiency across the full load range93% peak efficiency at 12 VIN, 5 VOUT, 1 MHzExternal bias option for improved efficiencyShutdown quiescent current of 0.6 µA (typical)Ultra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingSpread-spectrum modulationResistor-adjustable switch-node slew rateConstant-frequency FPWM mode of operationMeets CISPR 11 and 32 class B emissionsSuitable for scalable power suppliesPin compatible with theTPSM63602(36 V, 2 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and VINUVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63603E with theWEBENCH Power Designer
Description
AI
The TPSM63603E synchronous buck power module is a highly integrated 36-V, 3-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has pins for VIN and VOUT located at the corners of the package for optimized input and output capacitor layout placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing.
With an output voltage from 1 V to 16 V, the TPSM63603E is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process.
Although designed for small size and simplicity in space-constrained applications, the TPSM63603E module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.
space
The TPSM63603E synchronous buck power module is a highly integrated 36-V, 3-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an Enhanced HotRod™ QFN package. The module has pins for VIN and VOUT located at the corners of the package for optimized input and output capacitor layout placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing.
With an output voltage from 1 V to 16 V, the TPSM63603E is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process.
Although designed for small size and simplicity in space-constrained applications, the TPSM63603E module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum option for improved EMI, integrated VCC, bootstrap and input capacitors for increased reliability and higher density, constant switching frequency over the full load current range, and a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.
