076500 Series

Manufacturer: Molex

Catalog

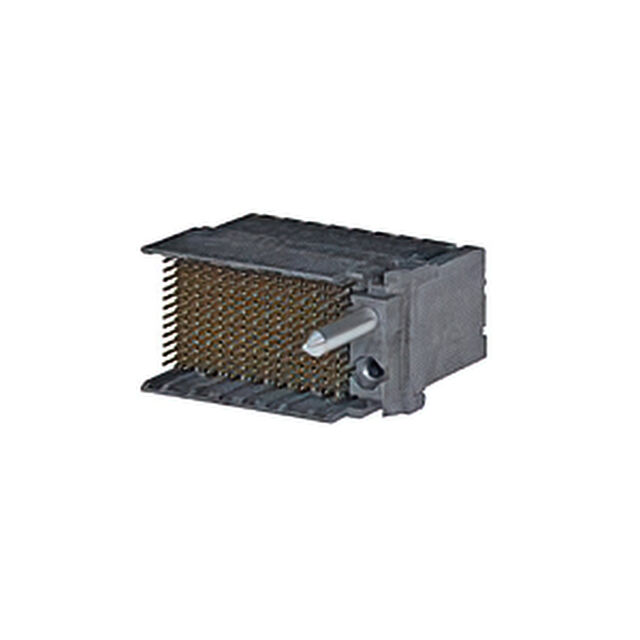

CONN HDR IMPACT 96POS EDGE MNT

Part	Material Flammability Rating	Number of Positions Loaded	Color	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Layout, Typical	Contact Finish	Number of Columns	Contact Finish Thickness	Contact Finish Thickness	Termination	Connector Type	Number of Positions	Features	Voltage Rating	Number of Rows	Mounting Type	Contact Layout, Typical	Number of Columns [custom]
Molex 0765003807	UL94 V-0	All	Black	Guide Left Impact	85 °C	-55 °C	32 Differential Pairs	Gold	8	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	96	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765005608	UL94 V-0	All	Black		85 °C	-55 °C		Gold	16	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	192	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole	64 Differential Pairs
Molex 0765001118	UL94 V-0	All	Black	Impact	85 °C	-55 °C	40 Differential Pairs	Gold	10	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	120	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765001828	UL94 V-0	All	Black	Impact	85 °C	-55 °C	32 Differential Pairs	Gold		0.76 Ám	30 Áin	Press-Fit	Header Male Pins	216	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole		18
Molex 0765001108	UL94 V-0	All	Black	Impact	85 °C	-55 °C	40 Differential Pairs	Gold	10	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	120	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765001117	UL94 V-0	All	Black	Impact	85 °C	-55 °C	40 Differential Pairs	Gold	10	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	120	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765001628	UL94 V-0	All	Black	Impact	85 °C	-55 °C		Gold	16	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	192	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole	64 Differential Pairs
Molex 0765005108	UL94 V-0	All	Black		85 °C	-55 °C	40 Differential Pairs	Gold	10	0.25 Ám	10 Áin	Press-Fit	Header Male Pins	120	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765007107	UL94 V-0	All	Black	Guide Left Impact	85 °C	-55 °C	40 Differential Pairs	Gold	10	0.76 Ám	30 Áin	Press-Fit	Header Male Pins	120	Board Guide	30 VDC	12	Board Edge Right Angle Through Hole
Molex 0765003604
