MRPR-3-32-38 Series

MRPR-3 5273 32-38

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

MRPR-3 5273 32-38

Part	Type	Release Time	Voltage - Switching DC	Termination Style	Operate Time	Voltage - Switching AC [custom]	Circuit	Operate Range [Max]	Operate Range [Min]	Mounting Type	Power - Rated	Size - Body [x]	Size - Body [x]	Size - Body [diameter]	Size - Body [diameter]	Current - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Length - Overall [x]	Length - Overall [x]	Capacitance
Littelfuse/Commercial Vehicle Products MRPR-3-32-38	Glass Body Reed	0.3 ms	200 V	Axial	750 µs	140 V	SPST-NO	38 AT	32 AT	Through Hole	50 W	19.69 mm	0.775 in	2.84 mm	0.112 in	1.1 A 1.5 A	125 °C	-40 °C	2.23 in	56.64 mm	0.2 pF

Catalog

MRPR-3 5273 32-38

Key Features

• Normally open switch capable of switching 200Vdc or 1.5A at up to 50 Watts

• Available sensitivity range of 22-43 AT

Description

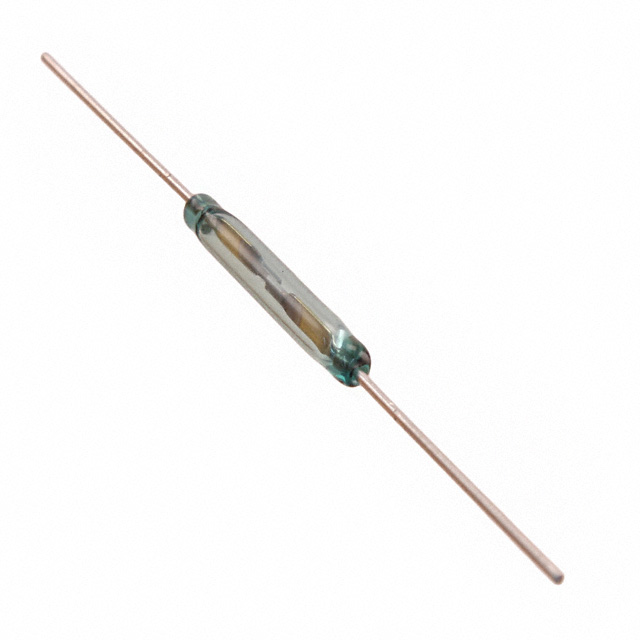

A miniature, normally open switch with a 19.69mm long x 2.84mm diameter (0.770" x .112") glass envelope. Capable of switching up to 200Vdc at 50W. It is rated to carry 3A and switch 1.5A. Available sensitivity range of 22-43 AT. High insulation resistance of 1010 ohms minimum and contact resistance of less than 100 milliohms. Ideally suited for limit sensing, telecom and office equipment. Will handle light inductive loads with no suppression circuitry.
