SM10B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

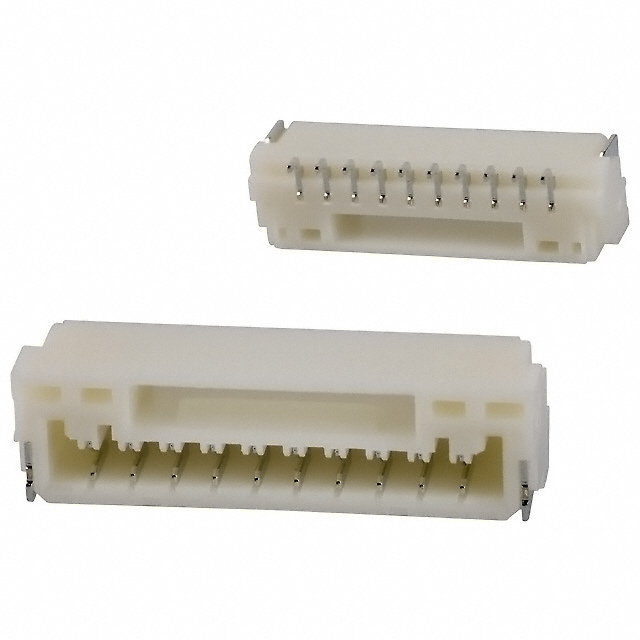

CONN HEADER SMD R/A 10POS 1.25MM
| Part | Termination | Number of Positions | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Style | Number of Rows | Contact Shape | Shrouding | Contact Material | Insulation Color | Connector Type | Features | Mounting Type | Number of Positions Loaded | Contact Type | Fastening Type | Insulation Material | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Solder | 10 | UL94 V-0 | 85 °C | -25 °C | 50 VAC | Board to Cable/Wire | 1 | Rectangular | Shrouded - 4 Wall | Phosphor Bronze | Natural | Header | Solder Retention | Right Angle Surface Mount | All | Outer Shroud Contact | Locking Ramp | Nylon 9T Polyamide (PA9T) | 0.049 in | 1.25 mm | 4.25 mm | 0.167 " | |
 JST Sales America Inc. | Solder | 10 | UL94 V-0 | 85 °C | -25 °C | 50 V | Board to Cable/Wire | 1 | Rectangular | Shrouded - 4 Wall | Phosphor Bronze | Natural | Header | Solder Retention | Right Angle Surface Mount | All | Outer Shroud Contact | Locking Ramp | Nylon 9T Polyamide (PA9T) | 0.049 in | 1.25 mm | 4.25 mm | 0.167 " | Tin |
