31-261 Series
Manufacturer: EAO
Beta
⌘K

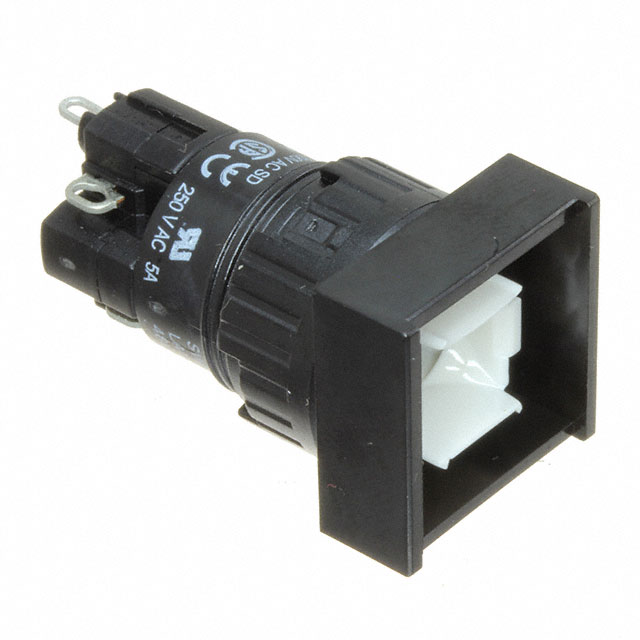

SWITCH PUSH BUTTON N.O./N.C. DPST RECTANGULAR BUTTON 5A 250VAC MAINTAINED PANEL MOUNT SOLDER
| Part | Mechanical Life | Voltage Rating - AC | Type | Actuator Type | Current Rating (Amps) | Termination Style | Ingress Protection | Actuator Marking | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Panel Cutout Dimensions [diameter] | Circuit | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | 250 V | Standard | Button Rectangular | 5 A | Solder Quick Connect - 0.110" (2.8mm) | IP40 | No Marking | Panel Mount Front | 55 °C | -25 °C | 16 mm | DPST-NO/NC | Off-On On-Off |
 EAO | ||||||||||||||
 EAO | 1000000 Cycles | 250 V | Standard | Button Rectangular | 5 A | Solder Lug | IP40 | No Marking | Panel Mount Front | 55 °C | -25 °C | 16 mm | DPST-NO/NC | Off-On On-Off |
