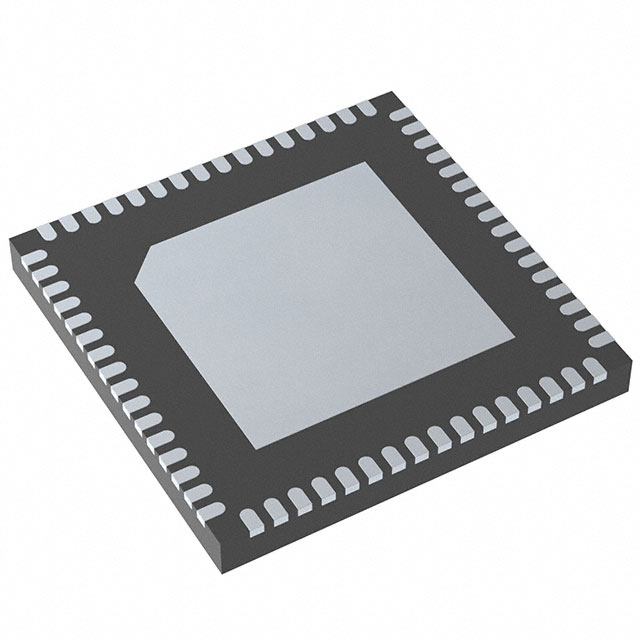

1080p oLDI Dual FPD-Link III Serializer
Key Features
• AEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 2: –40°C to +105°C, TASupports Clock Frequency up to 170 MHz for WUXGA (1920x1200) and 1080p60 Resolutions With 24-Bit Color DepthSingle and Dual FPD-Link III OutputsSingle Link: Up to 96-MHz Pixel ClockDual Link: Up to 170-MHz Pixel ClockSingle and Dual OpenLDI (LVDS) ReceiverConfigurable 18-Bit RGB or 24-Bit RGBHigh-Speed Back Channel Supporting GPIO up to 2 MbpsSupports up to 15 Meters of Cable with Automatic Temperature and Aging CompensationI2C (Master/Slave) With 1-Mbps Fast-Mode PlusSPI Pass-Through InterfaceBackward Compatible With DS90UB926Q-Q1 and DS90UB928Q-Q1 FPD-Link III DeserializersAEC-Q100 Qualified for Automotive ApplicationsDevice Temperature Grade 2: –40°C to +105°C, TASupports Clock Frequency up to 170 MHz for WUXGA (1920x1200) and 1080p60 Resolutions With 24-Bit Color DepthSingle and Dual FPD-Link III OutputsSingle Link: Up to 96-MHz Pixel ClockDual Link: Up to 170-MHz Pixel ClockSingle and Dual OpenLDI (LVDS) ReceiverConfigurable 18-Bit RGB or 24-Bit RGBHigh-Speed Back Channel Supporting GPIO up to 2 MbpsSupports up to 15 Meters of Cable with Automatic Temperature and Aging CompensationI2C (Master/Slave) With 1-Mbps Fast-Mode PlusSPI Pass-Through InterfaceBackward Compatible With DS90UB926Q-Q1 and DS90UB928Q-Q1 FPD-Link III Deserializers
Description
AI
The DS90UB947-Q1 is an OpenLDI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UB940-Q1/DS90UB948-Q1 deserializers, provides 1-lane or 2-lane high-speed serial streams over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cables. It serializes an OpenLDI input supporting video resolutions up to WUXGA and 1080p60 with 24-bit color depth.
The FPD-Link III interface supports video and audio data transmission and full duplex control, including I2C and SPI communication, over the same differential link. Consolidation of video data and control over two differential pairs reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible mode, the device supports up to WXGA and 720p resolutions with 24-bit color depth over a single differential link.
The DS90UB947-Q1 supports multi-channel audio received through an external I2S interface. Audio data received by the device is encrypted and sent over the FPD-Link III interface where it is regenerated by the deserializer.
The DS90UB947-Q1 is an OpenLDI to FPD-Link III bridge device which, in conjunction with the FPD-Link III DS90UB940-Q1/DS90UB948-Q1 deserializers, provides 1-lane or 2-lane high-speed serial streams over cost-effective 50-Ω single-ended coaxial or 100-Ω differential shielded twisted-pair (STP) cables. It serializes an OpenLDI input supporting video resolutions up to WUXGA and 1080p60 with 24-bit color depth.
The FPD-Link III interface supports video and audio data transmission and full duplex control, including I2C and SPI communication, over the same differential link. Consolidation of video data and control over two differential pairs reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In backward compatible mode, the device supports up to WXGA and 720p resolutions with 24-bit color depth over a single differential link.
The DS90UB947-Q1 supports multi-channel audio received through an external I2S interface. Audio data received by the device is encrypted and sent over the FPD-Link III interface where it is regenerated by the deserializer.
