179-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

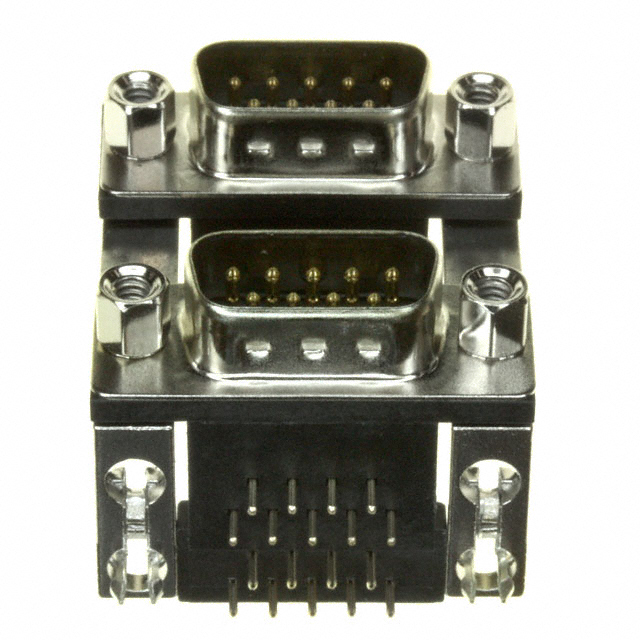

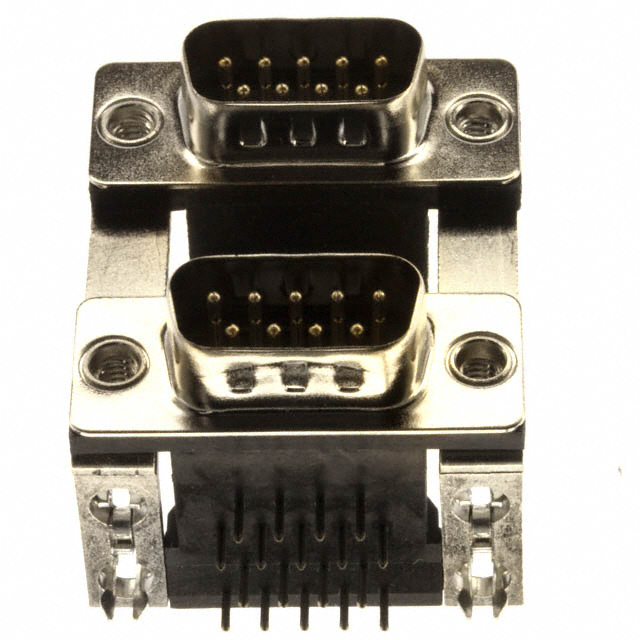

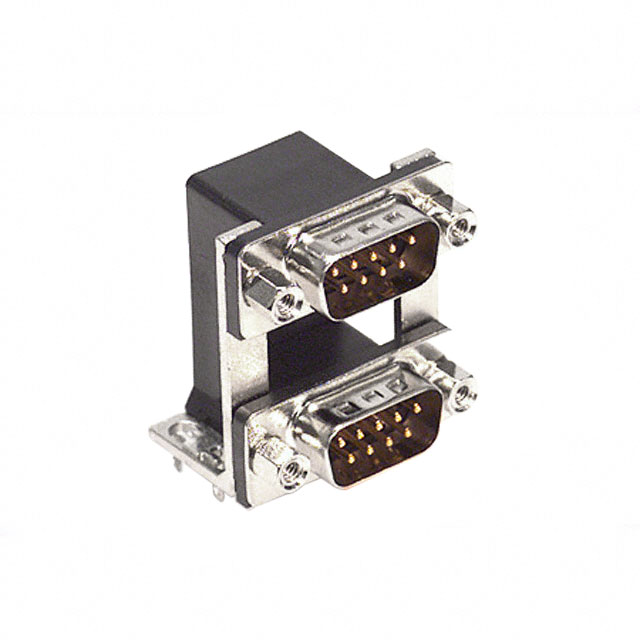

STACKED D SUB CONNECTOR, UPPER - PLUG / LOWER - PLUG, DE, 9 CONTACTS, THROUGH HOLE MOUNT, SOLDER
| Part | Color | Contact Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Backset Spacing | Backset Spacing | Material Flammability Rating | Connector Type | Number of Positions | Mounting Type | Shell Size, Connector Layout | Contact Type | Connector Style | Shell Material, Finish | Termination | Number of Rows [custom] | Features | Current Rating (Amps) | Contact Finish Thickness | Flange Feature | Contact Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents Shielded | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold | |
 NorComp Inc. | Black | Brass | Polyester Glass Filled | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Solder | 2 | Board Lock | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold | ||
 NorComp Inc. | Black | Brass | Polyester Glass Filled | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Solder | 2 | Board Lock Grounding Indents | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold | ||
NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents Shielded | 5 A | Flash | Housing/Shell | Gold | 4-40 |
NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Shielded | 5 A | Flash | Housing/Shell | Gold | 4-40 |
 NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents Shielded | 5 A | Flash | Housing/Shell | Gold | 4-40 |
NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Shielded | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold | |
NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Shielded | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold | |
NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins Receptacle Female Sockets | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents Shielded | 5 A | Flash | Housing/Shell | Gold | 4-40 |
 NorComp Inc. | Black | Brass | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | 8.08 mm | 0.318 " | UL94 V-0 | Plug Male Pins | 9 | Board Edge Right Angle Through Hole | 1 | Signal | D-Sub - Stacked | Nickel Plated Steel | Solder | 2 | Board Lock Grounding Indents Shielded | 5 A | Flash | 4-40 Mating Side Female Screwlock | Gold |
