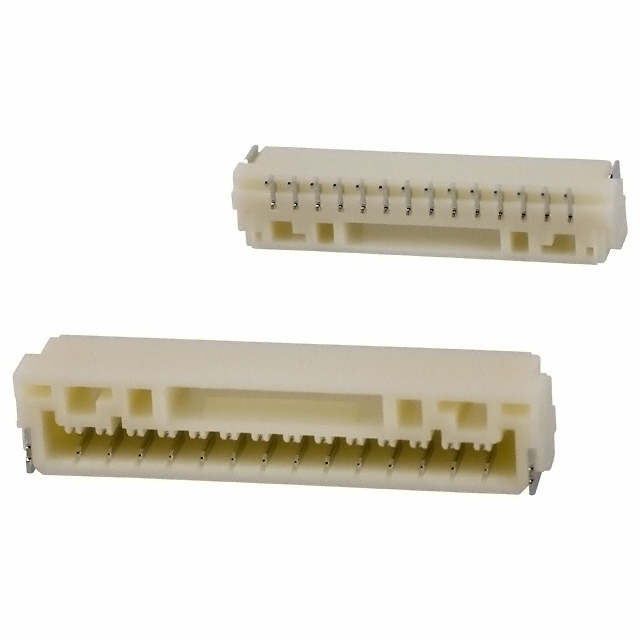

SM14B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 14POS 1.25MM
| Part | Number of Positions Loaded | Mounting Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Termination | Contact Type | Fastening Type | Insulation Height | Insulation Height | Voltage Rating | Insulation Material | Material Flammability Rating | Number of Positions | Contact Finish - Post | Number of Rows | Connector Type | Features | Style | Contact Shape | Contact Material | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | Right Angle Surface Mount | Natural | 85 °C | -25 °C | Shrouded - 4 Wall | Solder | Outer Shroud Contact | Locking Ramp | 4.25 mm | 0.167 " | 50 V | Nylon 9T Polyamide (PA9T) | UL94 V-0 | 14 | Tin | 1 | Header | Solder Retention | Board to Cable/Wire | Rectangular | Phosphor Bronze | 0.049 in | 1.25 mm |
