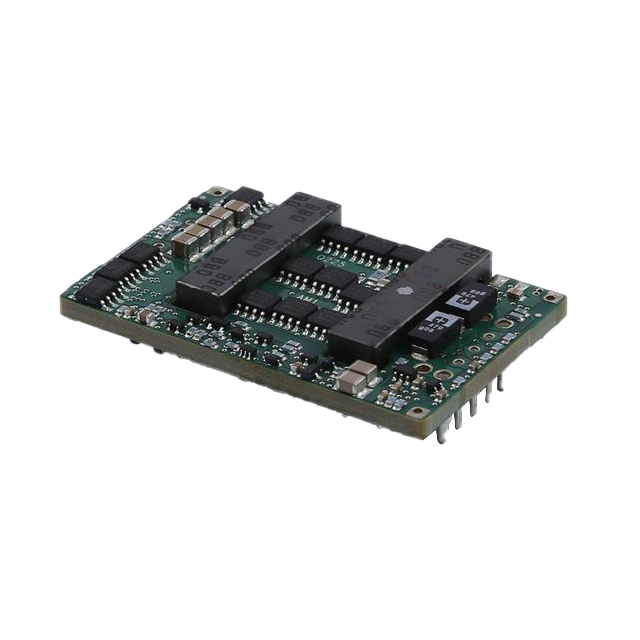

QPS4018 Series
Manufacturer: NetPower
Beta
⌘K
DC DC CONVERTER 1.8V 117W
| Part | Package / Case | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Control Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Power (Watts) | Voltage - Output 1 | Type | Voltage - Input (Min) [Min] | Supplier Device Package | Features | Efficiency | Number of Outputs | Mounting Type | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NetPower | Quarter Brick | 65 A | 57.9 mm | 10.2 mm | 2.28 " | 36.8 mm | 1.45 in | 0.4 " | Active Low Enable | 85 °C | -40 C | 75 V | 117 W | 1.8 V | Isolated Module | 36 V | Quarter Brick | Adjustable Output Remote On/Off Remote Sense | 89 % | 1 | Through Hole | 1.5 kV | ITE (Commercial) |
