KC52A1 Series
Manufacturer: E-Switch
Beta
⌘K

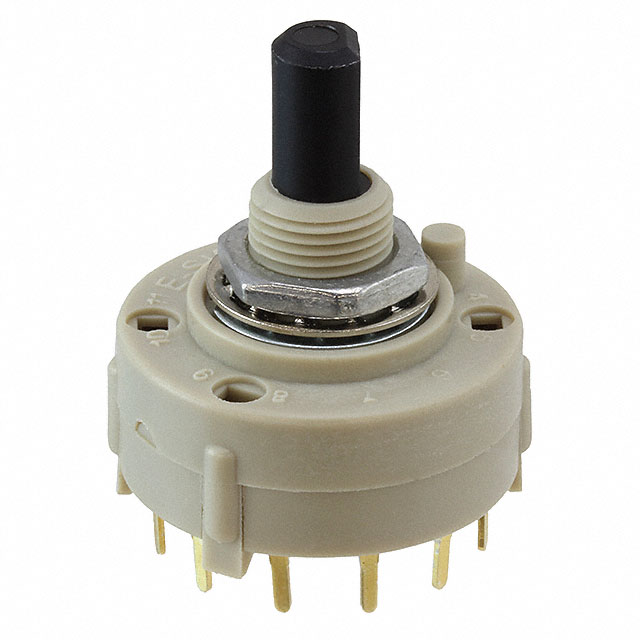

SWITCH ROTARY 12POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Termination Style | Contact Material | Number of Positions | Voltage Rating - AC | Depth Behind Panel [z] | Actuator Type | Number of Decks [custom] | Circuit per Deck | Number of Poles per Deck | Actuator Length [x] | Current Rating (Amps) | Contact Finish | Index Stops | Angle of Throw | Mounting Type | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | Solder Lug | Copper Alloy | 12 | 125 V | 18.5 mm | Flatted (6.35mm Dia) | 1 | SP12T | 1 | 10 mm | 350 mA | Silver | Fixed | 30 ° | Panel Mount | Non-Shorting (BBM) |
