BT840 Series

Catalog

RF TXRX MOD 802.15.4 BTU.FL SMD

Part	Mounting Type	RF Family/Standard	Utilized IC / Part	Memory Size	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Antenna Type	Data Rate	Serial Interfaces	Protocol	Sensitivity	Frequency	Package / Case	Supplied Contents	For Use With/Related Products	Type	Contents

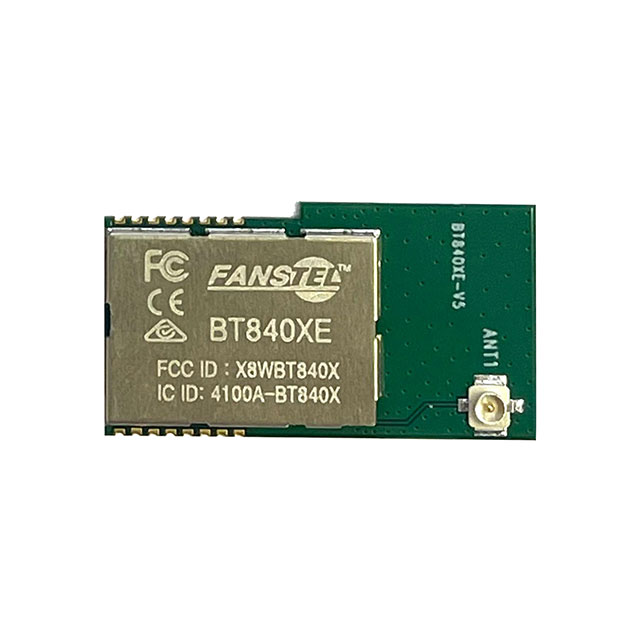

Fanstel Corp. BT840XE	Surface Mount	802.15.4 Bluetooth	nRF52840-QIAA	1 MB 256 kB	21 dBm	85 °C	-40 C	1.7 V	5.5 V	Antenna Not Included U.FL	2 MBd	ADC GPIO I2C I2S PWM SPI UART USB	Bluetooth v5.0 Thread Zigbee®	-96 dBm	2.4 GHz	16-SMD Module

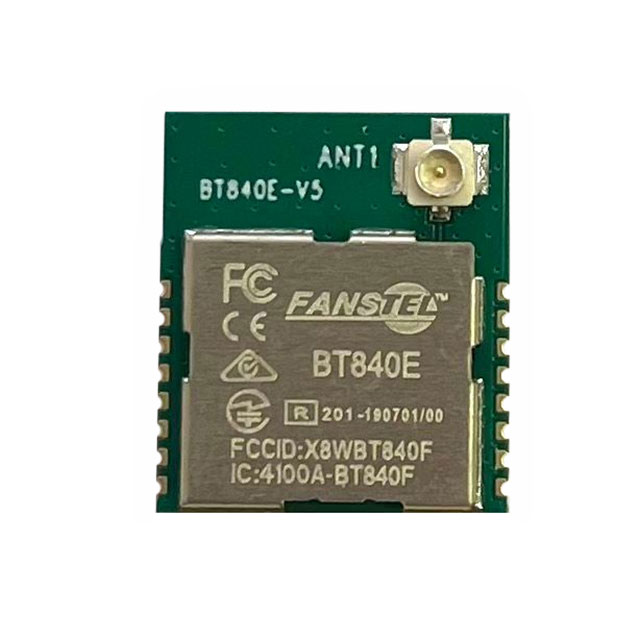

Fanstel Corp. BT840E	Surface Mount	802.15.4 Bluetooth	nRF52840	1 MB 256 kB	8 dBm	85 °C	-40 C	1.7 V	5.5 V	Antenna Not Included U.FL	12 Mbps	SPI USB	Bluetooth v5.0 Thread Zigbee®	-96 dBm	2.4 GHz	16-SMD Module
Fanstel Corp. EV-BT840F			BT840F												2.4 GHz		Board(s)	BT840F	Transceiver; Bluetooth® 5.x (BLE)	Board(s)
Fanstel Corp. BT840X	Surface Mount	802.15.4 Bluetooth	nRF52840-QIAA	1 MB 256 kB	21 dBm	85 °C	-40 C	1.7 V	5.5 V	PCB Trace	2 MBd	ADC GPIO I2C I2S PWM SPI UART USB	Bluetooth v5.0 Thread Zigbee Zigbee®	-96 dBm	2.4 GHz	16-SMD Module

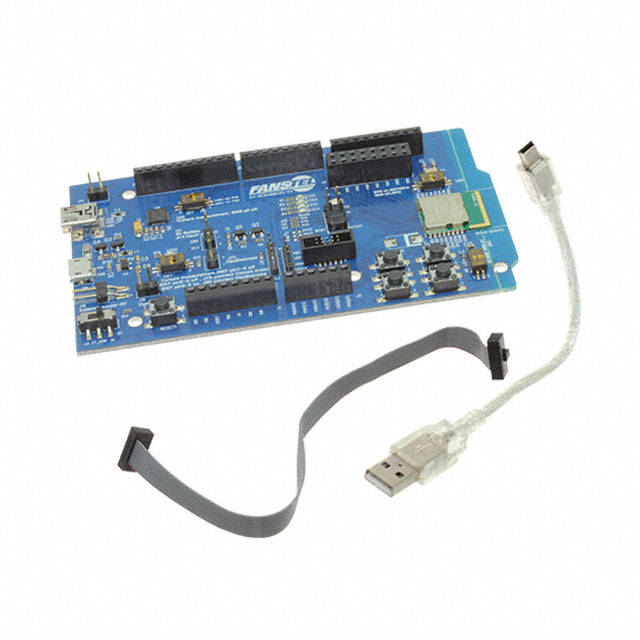

Fanstel Corp. EV-BT840			BT840												2.4 GHz		Board(s)		Transceiver; Bluetooth® 5.x (BLE)	Board(s)

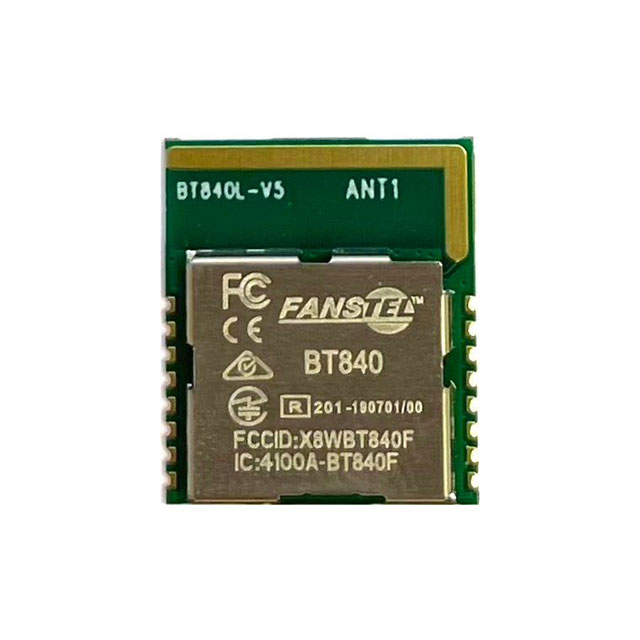

Fanstel Corp. BT840	Surface Mount	802.15.4 Bluetooth	nRF52840	1 MB 256 kB	8 dBm	85 °C	-40 C	1.7 V	5.5 V	Integrated Trace	12 Mbps	SPI USB	Bluetooth v5.0 Thread Zigbee®	-96 dBm	2.4 GHz	16-SMD Module
Fanstel Corp. EV-BT840E			BT840E												2.4 GHz		Board(s)	BT840E	Transceiver; Bluetooth® 5.x (BLE)	Board(s)

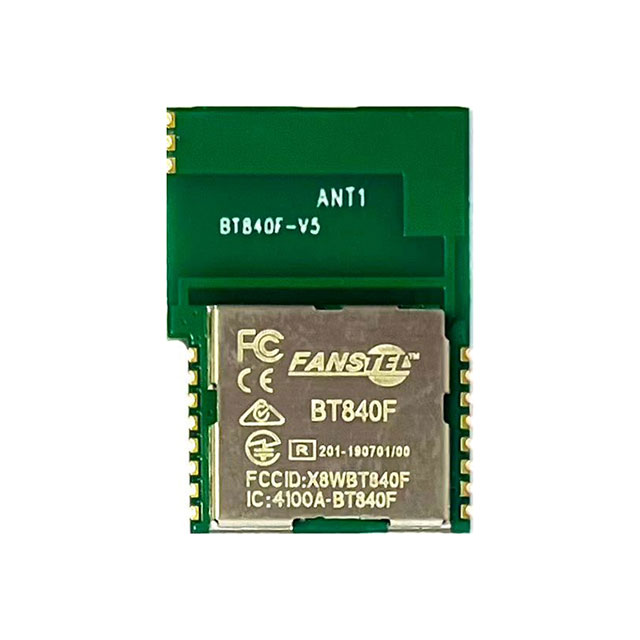

Fanstel Corp. BT840F	Surface Mount	802.15.4 Bluetooth	nRF52840	1 MB 256 kB	8 dBm	85 °C	-40 C	1.7 V	5.5 V	Integrated Trace	12 Mbps	SPI USB	Bluetooth v5.0 Thread Zigbee®	-96 dBm	2.4 GHz	16-SMD Module
