9875 Series
Manufacturer: Belden Inc.
Beta
⌘K

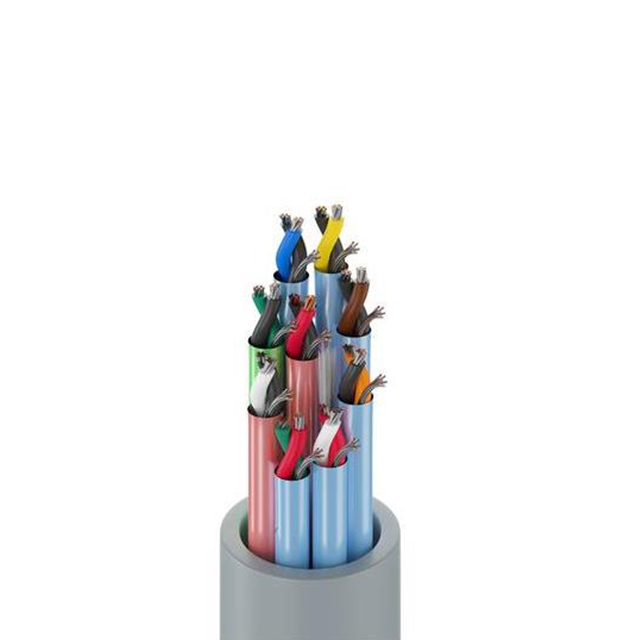

MULTI-PAIR 18COND 20AWG
| Part | Shield Material | Shield Coverage | Usage | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Ratings | Wire Gauge | Jacket (Insulation) Material | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Audio Control Instrumentation | Multi-Pair | 152.4 m | 500 ft | 28 AWG | 7 | 14.1 mm | 0.555 in | Drain Wire | UL Style 2919 | 20 AWG | Poly-Vinyl Chloride (PVC) | 18 | 80 °C | -20 ░C | Copper Tinned | Chrome | 0.052 in | 1.321 mm | Foil | Polypropylene (PP) | ||
 Belden Inc. | Aluminum | 100 % | Audio Control Instrumentation | Multi-Pair | 28 AWG | 7 | 14.1 mm | 0.555 in | Drain Wire | UL Style 2919 | 20 AWG | Poly-Vinyl Chloride (PVC) | 18 | 80 °C | -20 ░C | Copper Tinned | Chrome | 0.052 in | 1.321 mm | Foil | Polypropylene (PP) | 100 ft | 30.5 m |
