94HCB08 Series

Catalog

SWITCH ROTARY DIP OCTAL 0.1A 50V

Part	Length	Length	Body Material	Mechanical Life	Actuator Type	Circuit	Termination Style	Features	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Washable	Actuator Level	Mounting Type	Voltage Rating	Contact Material	Current Rating (Amps)	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]

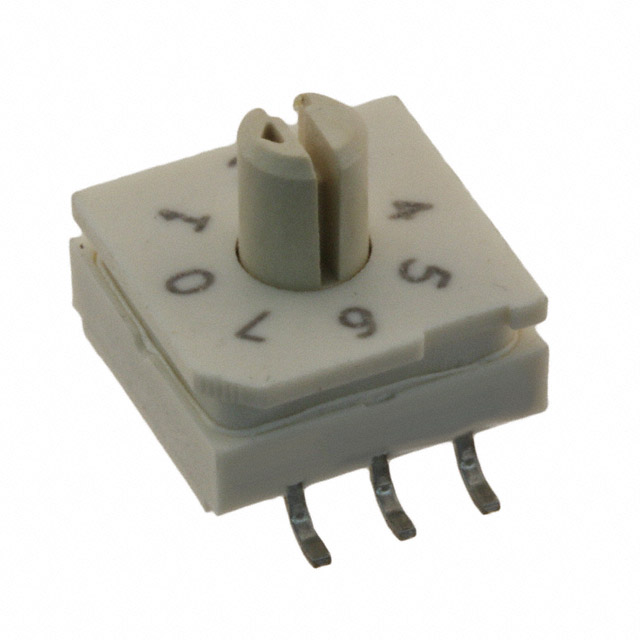

Grayhill Inc. 94HCB08WT	0.39 "	9.91 mm	Plastic	10000 Steps	Rotary with Shaft	Octal	Gull Wing	Sealed	Gold	85 °C	-40 C	8		Raised	Surface Mount	50 V	Copper Alloy	100 mA	2.54 mm	0.1 "	5.72 mm	0.225 in
