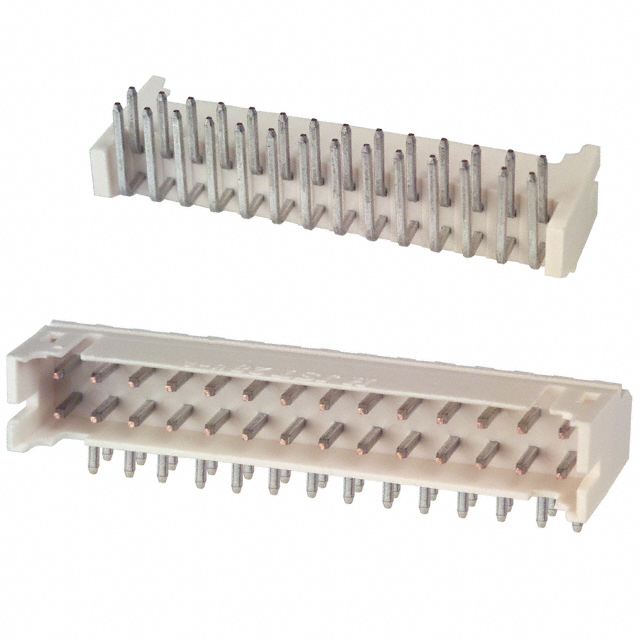

S28B-PHD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 28POS 2MM
| Part | Voltage Rating | Contact Type | Shrouding | Insulation Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Contact Shape | Termination | Number of Rows [custom] | Fastening Type | Number of Positions | Material Flammability Rating | Contact Material | Connector Type | Contact Length - Mating | Contact Length - Mating | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Contact Finish - Post | Insulation Height | Insulation Height | Number of Positions Loaded | Mounting Type | Contact Length - Post | Contact Length - Post | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 250 V | Male Pin | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | 0.079 " | 2 mm | 85 °C | -25 °C | Natural | Square | Solder | 2 | Detent Lock | 28 | UL94 V-0 | Copper Alloy | Header | 2.9 mm | 0.114 in | 2 mm | 0.079 in | 3 A | Tin | 0.197 " | 5 mm | All | Right Angle Through Hole | 0.118 in | 3 mm | Board to Cable/Wire |
