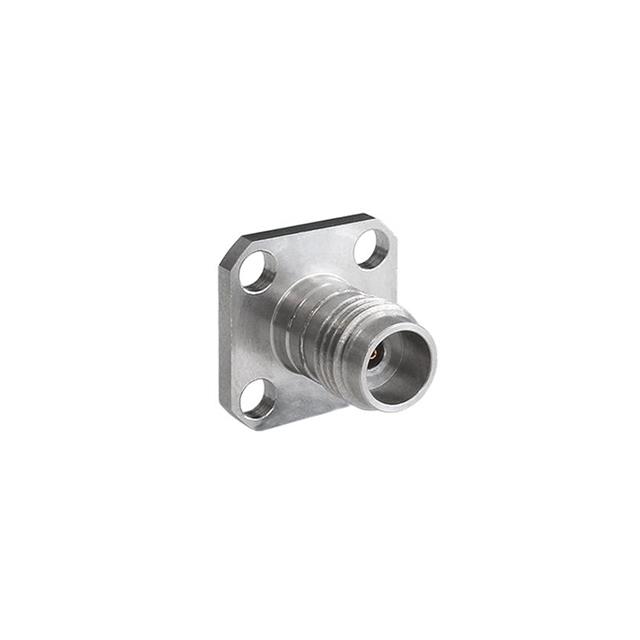

RF185 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K
RF / COAXIAL CONNECTOR, 1.85MM COAXIAL, STRAIGHT FLANGED PLUG, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Mating Cycles | Dielectric Material | Voltage Rating | Frequency - Max [Max] | Mounting Feature | Center Contact Material | Mounting Type | Connector Style | Housing Color | Fastening Type | Impedance | Number of Ports | Shield Termination | Connector Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Plug Male Pin | Compression |
 BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Female Socket Jack | Compression |
 BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Female Socket Jack | Compression |
BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Plug Male Pin | Compression |
BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Female Socket Jack | Compression |
BULGIN LIMITED | 85 °C | -40 C | Stainless Steel | 500 | Polyetherimide (PEI) | 150 VDC | 65 GHz | Flange | Beryllium Copper | Panel Mount | 1.85 mm | Silver | Threaded | 50 Ohms | 1 | Screw | Female Socket Jack | Compression |
