842-053 Series
Manufacturer: EDAC Inc.
Beta
⌘K

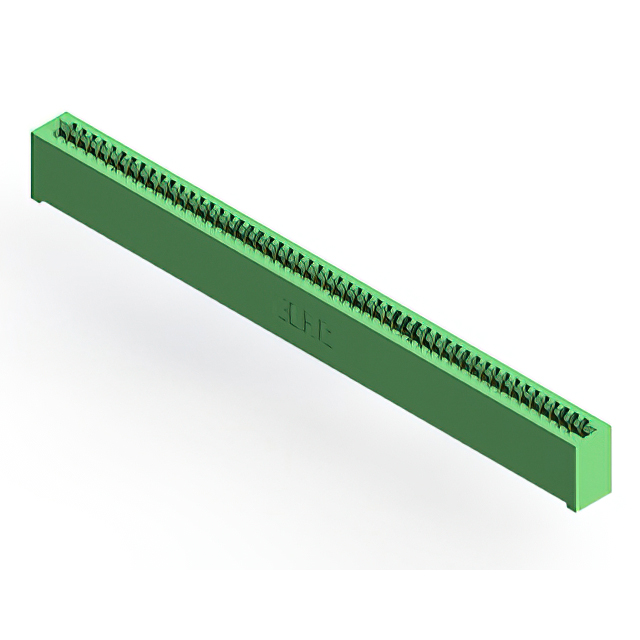

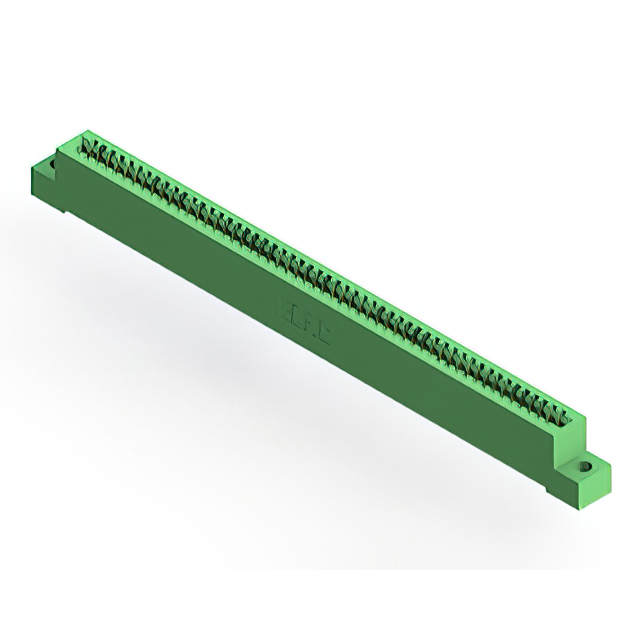

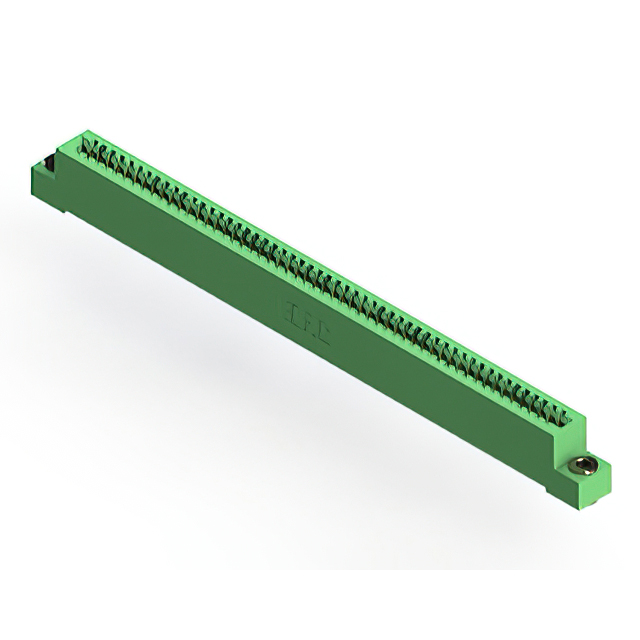

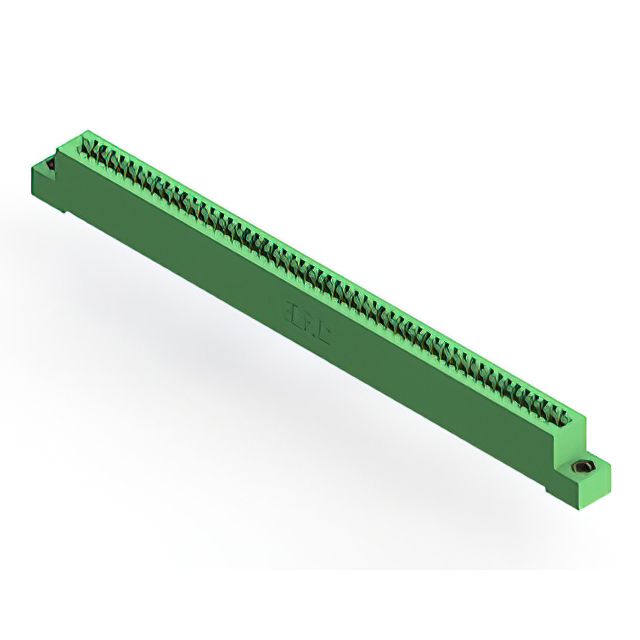

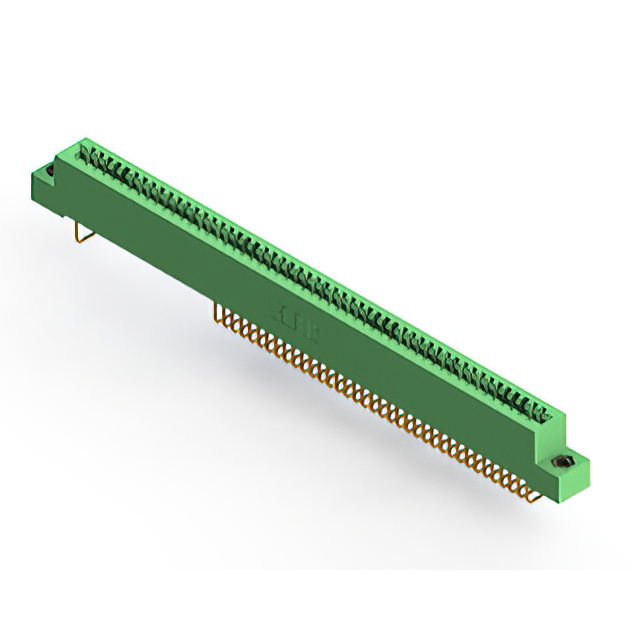

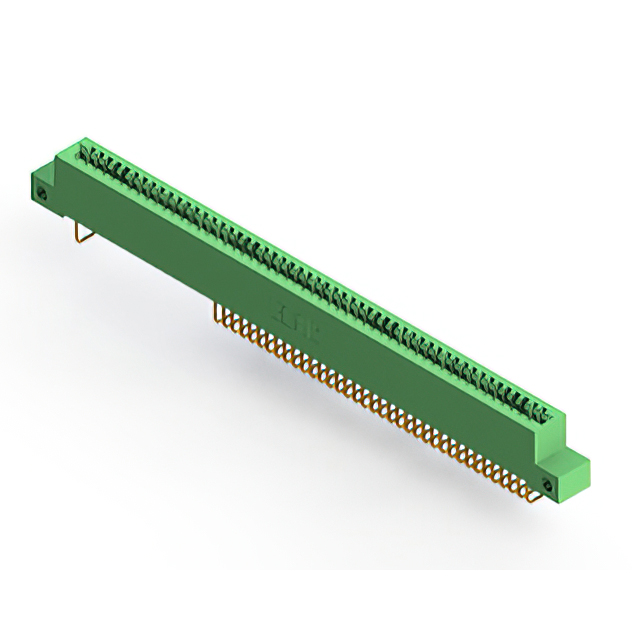

CONN EDGE SINGLE FML 53POS 0.100
| Part | Termination Rows | Contact Material | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Contact Finish | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Color | Number of Positions | Flange Feature | Contact Type | Number of Positions/Bay/Row | Number of Rows | Pitch | Pitch | Gender | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | ||
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | ||
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount Side Opening Unthreaded | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Right Angle Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount Top Opening Unthreaded | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount Top Opening Unthreaded | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.156 " | 3.96 mm |
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | |||
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | |||
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount Top Opening Unthreaded | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.128 " | 3.25 mm |
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Floating Bobbin Flush Mount | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.116 " | 2.95 mm |
 EDAC Inc. | 1 | Copper Alloy | Diallyl Phthalate (DAP) | 125 °C | -40 C | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Single | Green | 53 | Flush Mount Top Opening Unthreaded | Cantilever | 53 | 1 | 0.1 " | 2.54 mm | Female | 0.156 " | 3.96 mm |
