LBP-602 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
DISPLAY 7SEG 0.56" DBL YLW 18DIP
| Part | Digit/Alpha Size [custom] | Digit/Alpha Size [custom] | Current - Test | Wavelength - Peak | Package / Case [x] | Package / Case [x] | Package / Case | Color | Common Pin | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Number of Characters | Millicandela Rating | Voltage - Forward (Vf) (Typ) | Display Type | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

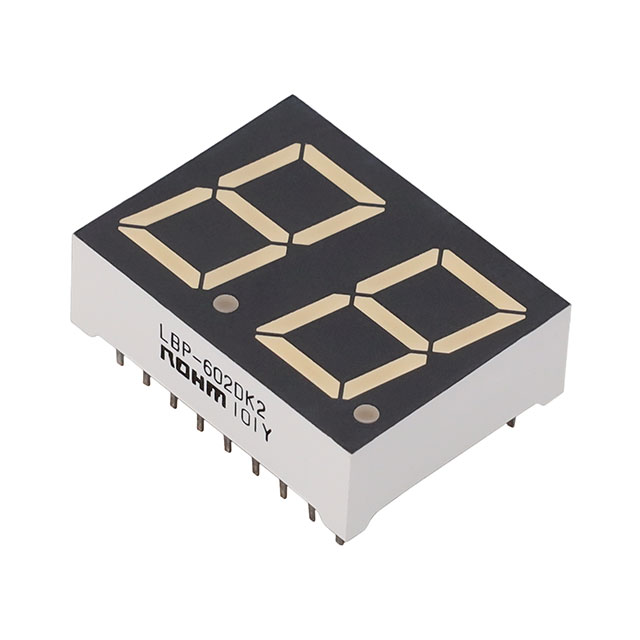

 Rohm Semiconductor | 0.56 " | 14.3 mm | 10 mA | 590 nm | 15.24 mm | 0.6 in | 18-DIP | Yellow | Common Cathode | 8 mm | 0.315 in | 0.984 " | 0.748 in | 25 mm | 19 mm | 2 | 450 mcd | 1.9 V | 7-Segment | 896 mW |

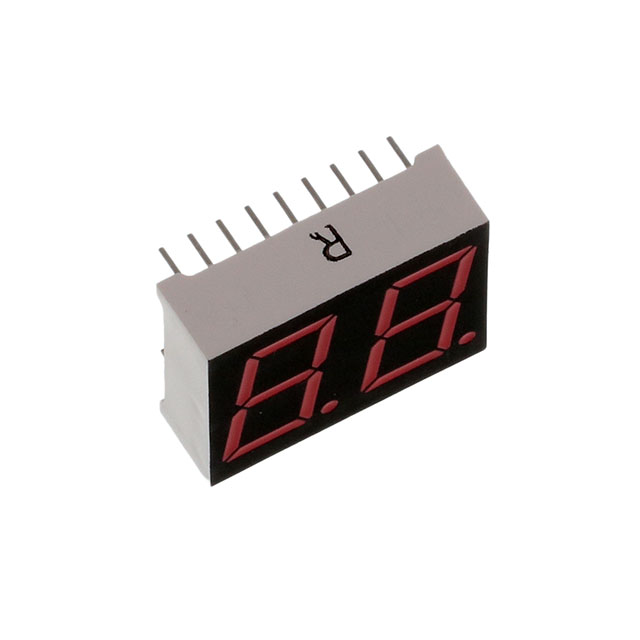

 Rohm Semiconductor | 0.56 " | 14.3 mm | 10 mA | 650 nm | 15.24 mm | 0.6 in | 18-DIP | Red | Common Cathode | 8 mm | 0.315 in | 0.984 " | 0.748 in | 25 mm | 19 mm | 2 | 36 mcd | 1.9 V | 7-Segment | 896 mW |
 Rohm Semiconductor | 0.56 " | 14.3 mm | 10 mA | 605 nm | 15.24 mm | 0.6 in | 18-DIP | Common Cathode | 8 mm | 0.315 in | 0.984 " | 0.748 in | 25 mm | 19 mm | 2 | 250 mcd | 1.9 V | 7-Segment | 896 mW |
