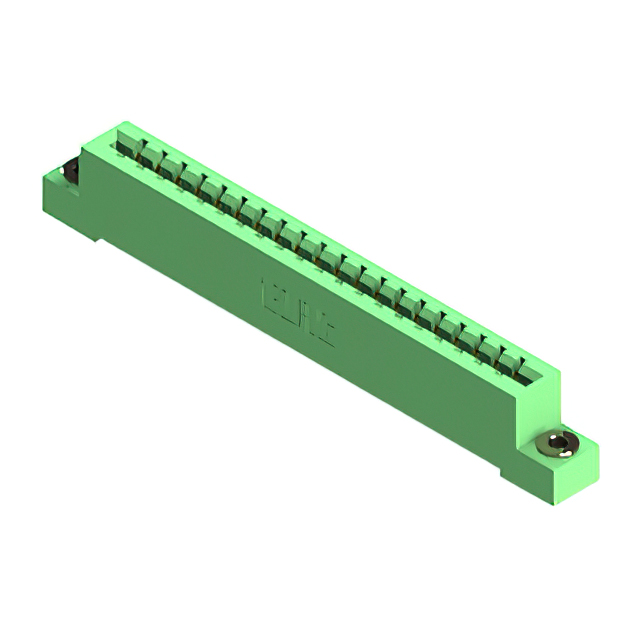

837-020 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 20POS 0.156
| Part | Material - Insulation | Termination Rows | Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Finish | Contact Type | Card Type | Number of Positions | Contact Material | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Number of Rows | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row | Termination Rows [custom] | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Single Edge | 20 | Copper Alloy | Female | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Single | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 20 Bay/Row | |||

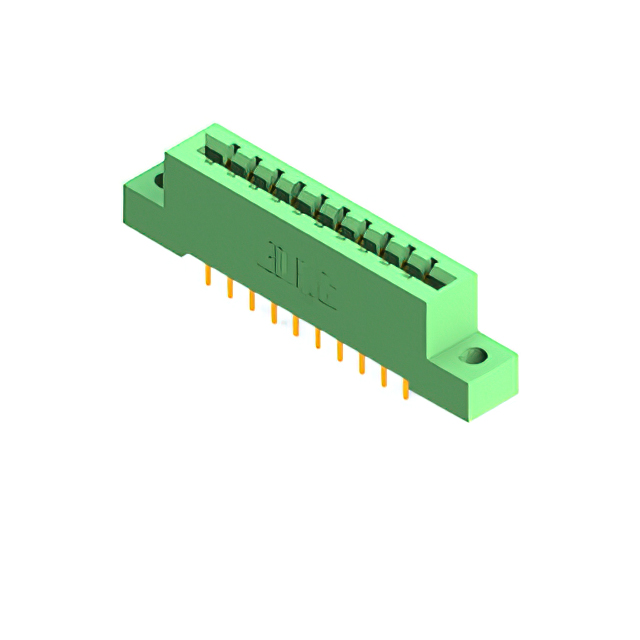

 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | 0.156 " | 3.96 mm | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | ||||

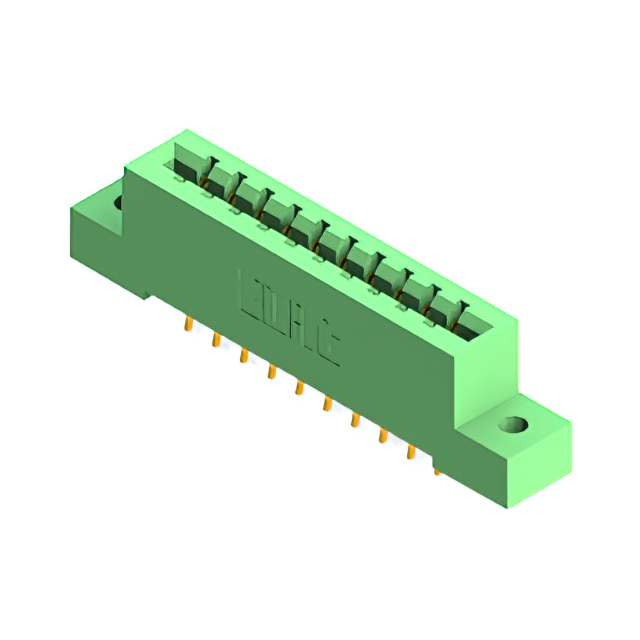

 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | M3 Threaded Insert Top Mount Opening | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | |||||

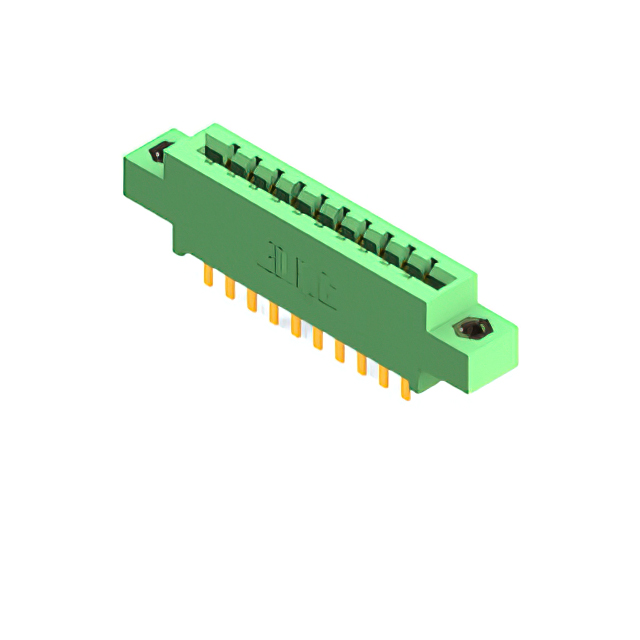

 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Dual | Board Edge Straddle Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | Card Extender | ||

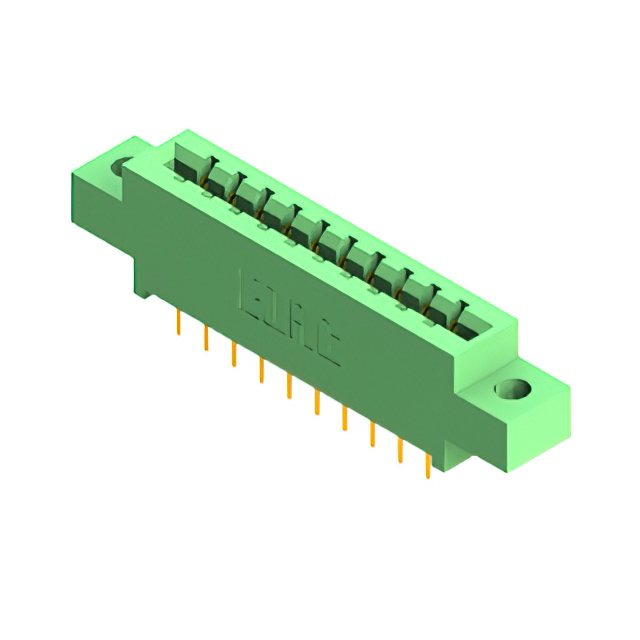

 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | |||

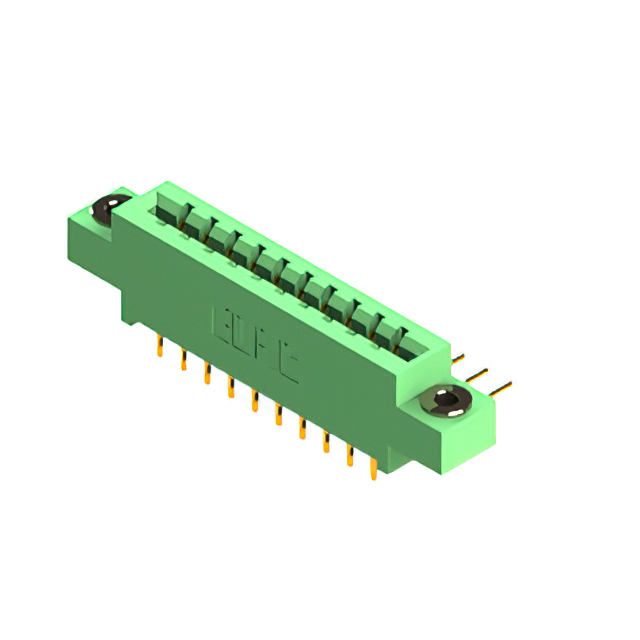

 EDAC Inc. | Diallyl Phthalate (DAP) | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | 0.116 " | Floating Bobbin Top Mount Opening | 2.95 mm | Dual | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Wire Wrap | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Dual Edge | 20 | Copper Alloy | Female | M3 Threaded Insert Top Mount Opening | Dual | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 10 | 2 | 2 | |||||

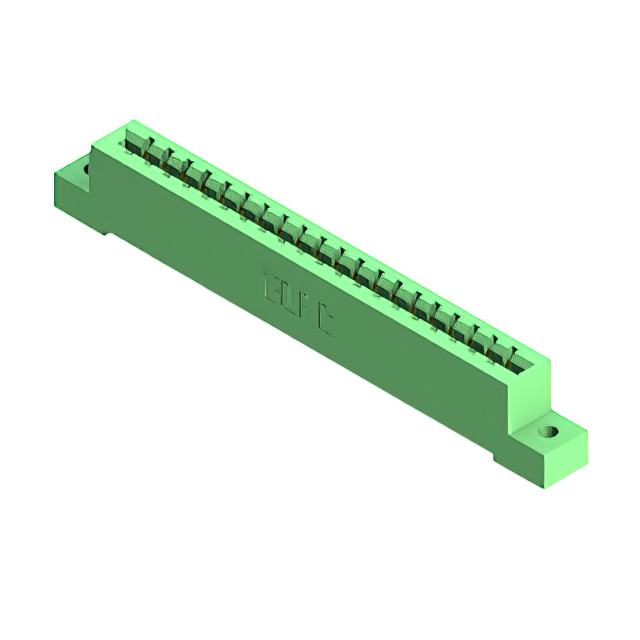

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Single Edge | 20 | Copper Alloy | Female | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Single | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 20 Bay/Row | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Solder Eyelet(s) | Green | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Gold | Cantilever | Non Specified - Single Edge | 20 | Copper Alloy | Female | 4-40 Threaded Insert Top Mount Opening | Single | 1 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | 20 Bay/Row |
