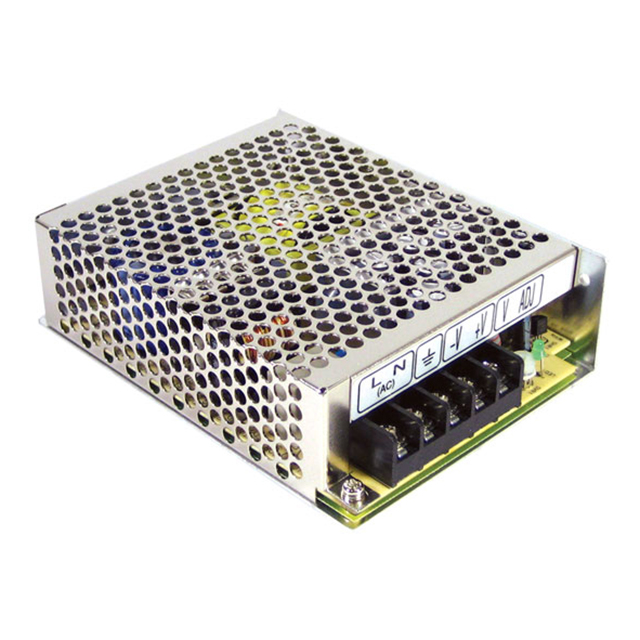

RID-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 12V 66W
| Part | Minimum Load Required | Current - Output 1 | Efficiency | Features | Type | Power (Watts) | Number of Outputs | Current - Output 2 | Applications | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Isolation | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 6 A | 81 % | Adjustable Output Universal Input | Enclosed | 66 W | 2 | 3 A | ITE (Commercial) | 12 V | 70 °C | -25 °C | CB CE cURus TUV | 3000 V | 5 V | 88 VAC 125 VDC | 264 VAC 373 VDC | Chassis Mount | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm | |
MEAN WELL USA Inc. | 4 A | Adjustable Output Universal Input | Enclosed | 68 W | 2 | 2 A | ITE (Commercial) | 24 V | 70 °C | -25 °C | CB CE cURus TUV | 3000 V | 5 V | 88 VAC 125 VDC | 264 VAC 373 VDC | Chassis Mount | 129 mm | 38 mm | 3.86 " | 5.08 " | 1.5 in | 98 mm |
