FST 5x20 Series

Catalog

CARTRIDGE FUSES FST 5X20 250V 630MA

Part	Melting I˛t	Current Rating (Amps)	Melting I²t	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Fuse Type	Approval Agency	Voltage Rating - AC	Package / Case [x]	Package / Case [y]	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage

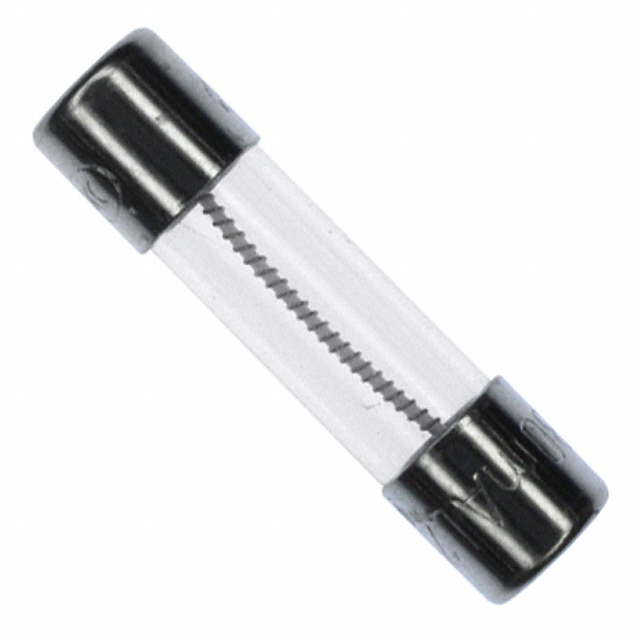

SCHURTER Inc. 0034.3115	4.35	0.63 A	4.35	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	CCC cURus VDE	250 V	5 mm	20 mm	-55 C	125 °C	Slow Blow	Requires Holder	35 A

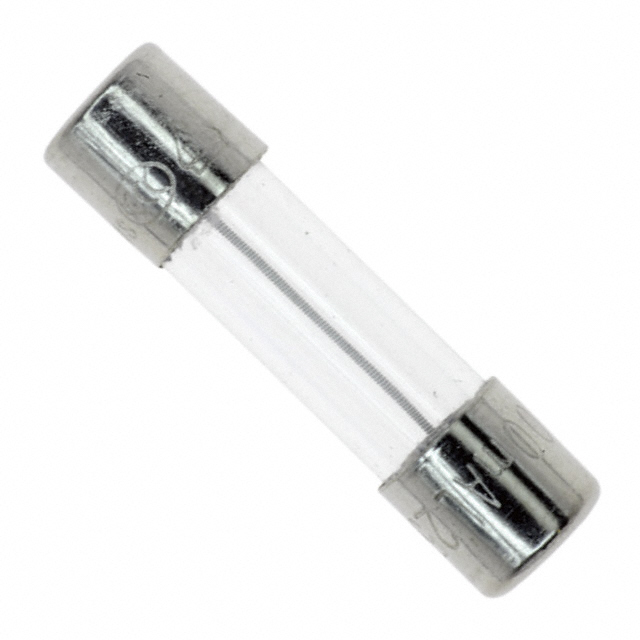

SCHURTER Inc. 0034.3107		100 mA	0.107	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	CCC cURus VDE	250 V	5 mm	20 mm	-55 C	125 °C	Slow Blow	Requires Holder	35 A
SCHURTER Inc. 0034.3125		6.3 A	190	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass		250 V	5 mm	20 mm	-55 C	125 °C	Slow Blow	Requires Holder	63 A
SCHURTER Inc. 0034.3128		12.5 Amps	750	20 mm	0.205 in	0.787 "	5.2 mm	Cartridge Glass	CQC cURus PSE/JET VDE	250 V	5 mm	20 mm	-55 C	125 °C	Slow Blow	Requires Holder	125 A
