TST12 Series

Catalog

CONN RECTANGULAR SKT 12 POS 5.08MM SLDR ST TH ROHS COMPLIANT: YES

Part	Contact Shape	Insulation Material	Applications	Mounting Type	Insulation Height	Insulation Height	Connector Type	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Features	Contact Type	Termination	Contact Finish Thickness - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Style	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Current Rating (Amps)	Shrouding	Voltage Rating

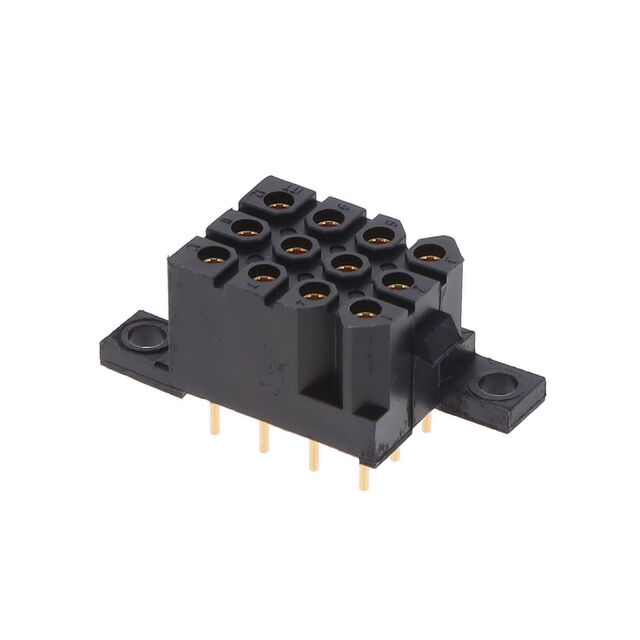

ITT Cannon, LLC TST12RB02Z	Circular	Nylon Polyamide (PA)	Automotive General Purpose	Through Hole	13.5 mm	0.531 in	Receptacle	Black	Latch Holder	0.2 "	5.08 mm	-40 C	105 ░C	All	Mounting Flange	Female Socket	Solder	Flash	12	5.7 mm	0.224 in	Board to Board Cable	Gold	5.08 mm	0.2 in	UL94 V-0
ITT Cannon, LLC TST12RB06T	Circular	Nylon Polyamide (PA)	Automotive General Purpose	Through Hole	13.5 mm	0.531 in	Receptacle	Black	Latch Holder	0.2 "	5.08 mm	-40 C	105 ░C	All	Mounting Flange	Female Socket	Solder		12	5.7 mm	0.224 in	Board to Board Cable		5.08 mm	0.2 in	UL94 V-0
ITT Cannon, LLC TST12RR01Z	Circular	Nylon Polyamide (PA)	Automotive Industrial	Right Angle Through Hole			Receptacle	Black	Latch Holder	0.2 "	5.08 mm	-40 C	105 ░C	All		Male Pin	Solder	Flash	12			Board to Cable/Wire	Gold	5.08 mm	0.2 in	UL94 V-0	13 A	Unshrouded	250 V
ITT Cannon, LLC TST12RR02T	Circular	Nylon Polyamide (PA)	Automotive General Purpose	Right Angle Through Hole			Receptacle	Black	Latch Holder	0.2 "	5.08 mm	-40 C	105 ░C	All		Female Socket	Solder		12			Board to Board Cable		5.08 mm	0.2 in	UL94 V-0
