93944 Series

Catalog

CONN HEADER VERT 11POS 2.54MM

Part	Insulation Height	Insulation Height	Number of Rows	Termination	Insulation Color	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Number of Positions Loaded	Fastening Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Contact Type	Shrouding	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Mating
Amphenol ICC (FCI) 93944-411HLF	0.1 in	2.54 mm	1	Solder	Black	11	2.54 çm	100 çin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header	Tin	0.1 in	2.54 mm	Through Hole

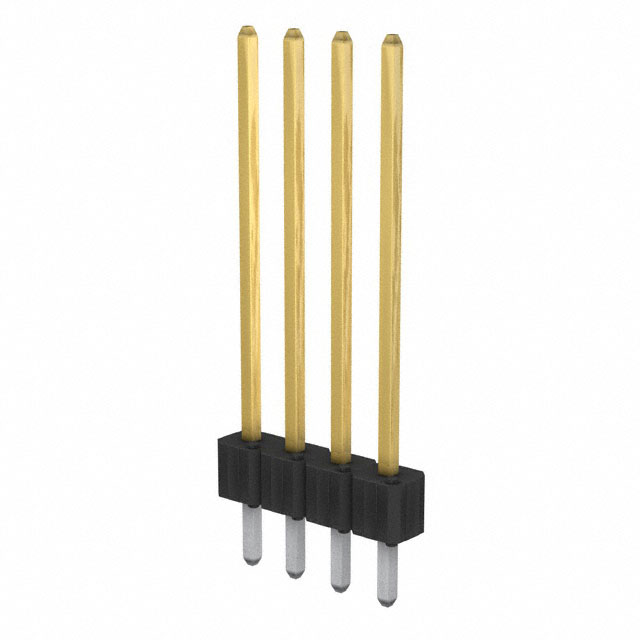

Amphenol ICC (FCI) 93944-104HLF	0.1 in	2.54 mm	1	Solder	Black	4	0.76 Ám	30 Áin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header		0.1 in	2.54 mm	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 93944-405HLF	0.1 in	2.54 mm	1	Solder	Black		2.54 çm	100 çin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header	Tin	0.1 in	2.54 mm	Through Hole
Amphenol ICC (FCI) 93944-429HLF	0.1 in	2.54 mm	1	Solder	Black	29	2.54 çm	100 çin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header	Tin	0.1 in	2.54 mm	Through Hole

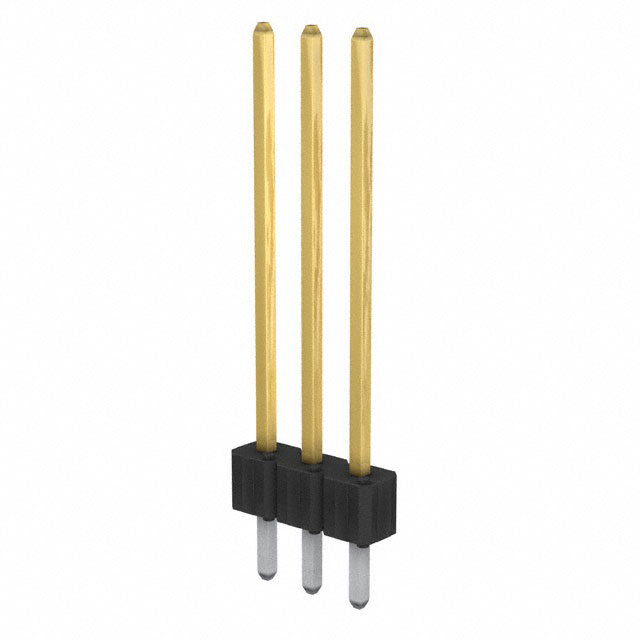

Amphenol ICC (FCI) 93944-103HLF	0.1 in	2.54 mm	1	Solder	Black		0.76 Ám	30 Áin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header		0.1 in	2.54 mm	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 93944-434HLF	0.1 in	2.54 mm	1	Solder	Black	34	2.54 çm	100 çin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header	Tin	0.1 in	2.54 mm	Through Hole
Amphenol ICC (FCI) 93944-417HLF	0.1 in	2.54 mm	1	Solder	Black		2.54 çm	100 çin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header	Tin	0.1 in	2.54 mm	Through Hole
Amphenol ICC (FCI) 93944-109HLF	0.1 in	2.54 mm	1	Solder	Black	9	0.76 Ám	30 Áin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header		0.1 in	2.54 mm	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 93944-123HLF	0.1 in	2.54 mm	1	Solder	Black	23	0.76 Ám	30 Áin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header		0.1 in	2.54 mm	Through Hole	Gold or Gold GXT™
Amphenol ICC (FCI) 93944-105HLF	0.1 in	2.54 mm	1	Solder	Black		0.76 Ám	30 Áin	Square	All	Push-Pull	18.06 mm	0.711 "	0.13 in	3.3 mm	0.941 in	23.9 mm	Male Pin	Unshrouded	UL94 V-0	3 A	-65 ░C	130 °C	Phosphor Bronze	Header		0.1 in	2.54 mm	Through Hole	Gold or Gold GXT™
