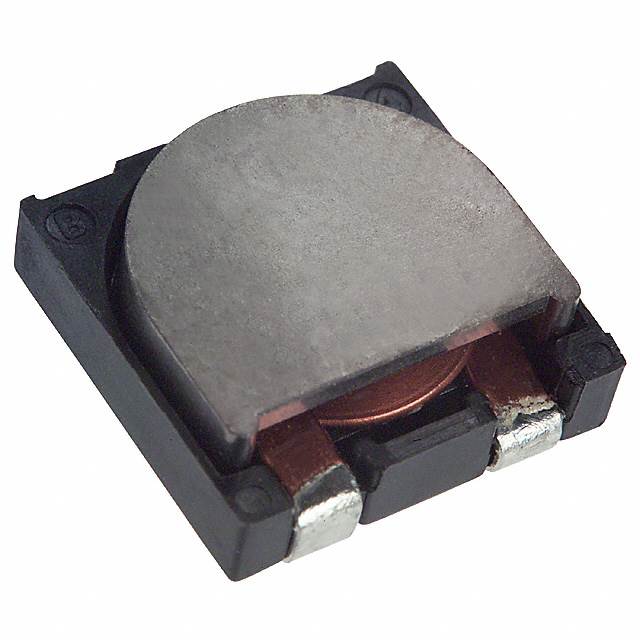

ETQ-P2 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 290NH 36A 0.54MOHM SMD
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Inductance Frequency - Test | Inductance | Package / Case | Package / Case | Shielding | DC Resistance (DCR) | Current Rating (Amps) | Tolerance | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | 0.512 in | 13 mm | 12.9 mm | 0.508 in | Surface Mount | 100 kHz | 290 nH | 4 Lead | Nonstandard | Shielded | 0.54 mOhm | 36 A | 20 % | Ferrite | 0.193 " | 4.9 mm | |
 Panasonic Industrial Automation Sales | 0.512 in | 13 mm | 12.9 mm | 0.508 in | Surface Mount | 100 kHz | 690 nH | 4 Lead | Nonstandard | Shielded | 21 A | 20 % | Ferrite | 0.193 " | 4.9 mm | 1.3 mOhm |
