JB15HBPC Series

Catalog

ILLUMINATED LOW PROFILE PROCESS SEALED TACTILE

Part	Mechanical Life	Switch Travel	Switch Function	Contact Rating @ Voltage	Circuit	Illumination	Features	Mounting Type	Ingress Protection	Outline [x]	Outline [y]	Operating Force	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Termination Style	Actuator Material	Actuator Height off PCB, Vertical [z]
NKK Switches JB15HBPC/H7E	1000000 Cycles	0.3 mm	Off-Mom	0.125 A 24 VDC	SPST-NO	Illuminated	Process Sealed	Through Hole	IP67 - Dust Tight Waterproof	10 mm	10 mm	265 gf	Plunger for Cap	LED Red	1.8 VDC	-25 °C	70 °C	Top Actuated	PC Pin
NKK Switches JB15HBPC-BH	1000000 Cycles	0.3 mm	Off-Mom	0.125 A 24 VDC	SPST-NO	Illuminated	Process Sealed	Through Hole	IP67 - Dust Tight Waterproof	10 mm	10 mm	265 gf	Square Button	LED Red	1.8 VDC	-25 °C	70 °C	Top Actuated	PC Pin	Polybutylene Terephthalate (PBT) Glass Filled	14.7 mm

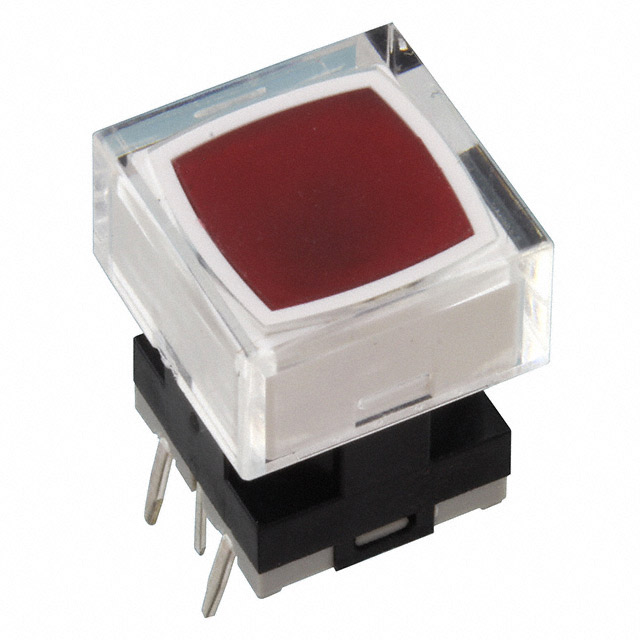

NKK Switches JB15HBPC-JC	1000000 Cycles	0.3 mm	Off-Mom	0.125 A 24 VDC	SPST-NO	Illuminated	Process Sealed	Through Hole	IP67 - Dust Tight Waterproof	10 mm	10 mm	265 gf	Square Button	LED Red	1.8 VDC	-25 °C	70 °C	Top Actuated	PC Pin	Polybutylene Terephthalate (PBT) Glass Filled	14.7 mm
NKK Switches JB15HBPC-JB	1000000 Cycles	0.3 mm	Off-Mom	0.125 A 24 VDC	SPST-NO	Illuminated	Process Sealed	Through Hole	IP67 - Dust Tight Waterproof	10 mm	10 mm	265 gf	Square Button	LED Red	1.8 VDC	-25 °C	70 °C	Top Actuated	PC Pin	Polybutylene Terephthalate (PBT) Glass Filled	14.7 mm
