EEG.0K Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish - Mating	Shielding	Ingress Protection	Mounting Type	Insert Material	Contact Material	Termination	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation [custom]	Fastening Type	Shell Finish	Shell Size - Insert	Material Flammability Rating	Mounting Feature	Current Rating (Amps)	Shell Material
LEMO EEG.0K.304.CLN	Silver	4	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	304	UL94 V-0	Bulkhead - Front Side Nut	7 A	Brass
LEMO EEG.0K.306.KLL	Black	6	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount	Polyetheretherketone (PEEK)	Bronze		Metal	1.5 Ám	59 Áin	G	Push-Pull		306	UL94 V-0	Bulkhead - Front Side Nut	2.5 A	Brass

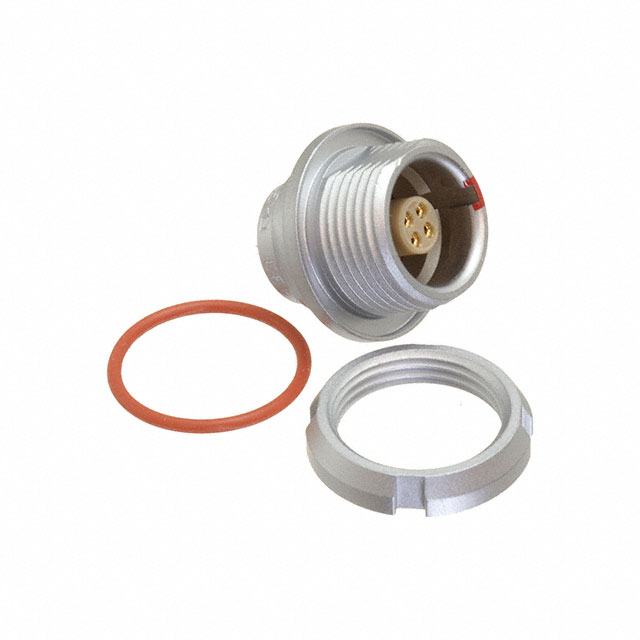

LEMO EEG.0K.304.CLL	Silver	4	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount	Polyetheretherketone (PEEK)	Bronze		Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	304	UL94 V-0	Bulkhead - Front Side Nut	7 A	Brass
LEMO EEG.0K.309.CLN	Silver	9	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	309	UL94 V-0	Bulkhead - Front Side Nut	2 A	Brass
LEMO EEG.0K.305.CLV	Silver	5	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	305	UL94 V-0	Bulkhead - Front Side Nut	6 A	Brass
LEMO EEG.0K.305.CLN	Silver	5	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	305	UL94 V-0	Bulkhead - Front Side Nut	6.5 A	Brass
LEMO EEG.0K.302.CLV	Silver	2	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	302	UL94 V-0	Bulkhead - Front Side Nut	6 A	Brass
LEMO EEG.0K.901.CLJ	Silver	2	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount	Polyetheretherketone (PEEK)	Constantan Iron		Metal			G	Push-Pull	Chrome	302	UL94 V-0	Bulkhead - Front Side Nut	10 A	Brass
LEMO EEG.0K.302.CLN	Silver	2	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	302	UL94 V-0	Bulkhead - Front Side Nut	10 A	Brass
LEMO EEG.0K.309.CLV	Silver	9	200 °C	-55 C	Receptacle Female Sockets	Gold	Shielded	IP66 IP68	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Bronze	Solder	Metal	1.5 Ám	59 Áin	G	Push-Pull	Chrome	309	UL94 V-0	Bulkhead - Front Side Nut	2 A	Brass
