PPPC301 Series

Catalog

CONN HDR 30POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Contact Material	Contact Shape	Insulation Material	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Termination	Material Flammability Rating	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Voltage Rating	Number of Rows	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]

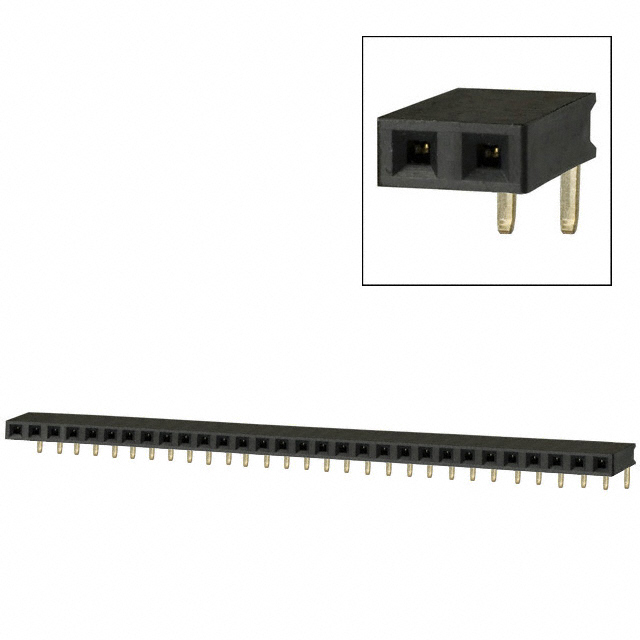

Sullins Connector Solutions PPPC301LGBN	Flash	Phosphor Bronze	Square	Polyester	Push-Pull	0.1 "	2.54 mm	Black	Gold	3 A	30	-40 C	105 ░C	Flash	All	0.1 in	2.54 mm	Right Angle Through Hole	Solder	UL94 V-0	Gold	0.124 in	3.15 mm	Female Socket	250 V	1	Header

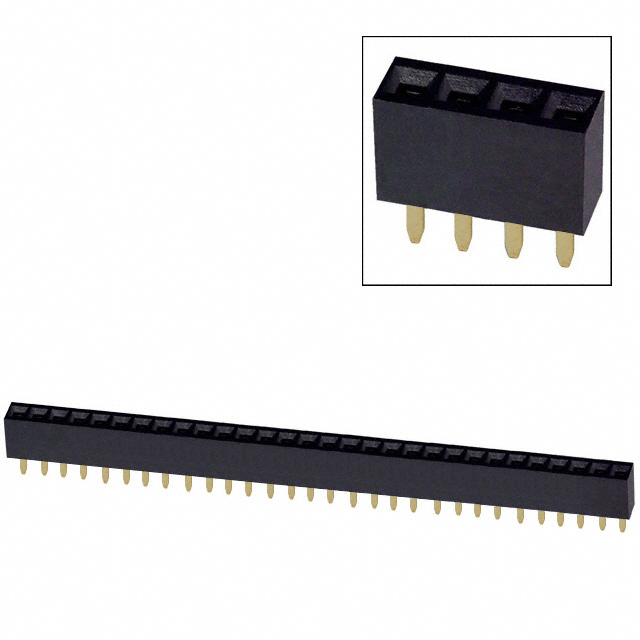

Sullins Connector Solutions PPPC301LFBN-RC	Flash	Phosphor Bronze	Square	Polyester	Push-Pull	0.1 "	2.54 mm	Black	Gold	3 A	30	-40 C	105 ░C	Flash	All	0.335 "	8.51 mm	Through Hole	Solder	UL94 V-0	Gold			Female Socket	250 V	1	Header	0.126 "	3.2 mm
Sullins Connector Solutions PPPC301LGBN-RC	Flash	Phosphor Bronze	Square	Polyester	Push-Pull	0.1 "	2.54 mm	Black	Gold	3 A	30	-40 C	105 ░C	Flash	All	0.1 in	2.54 mm	Right Angle Through Hole	Solder	UL94 V-0	Gold	0.124 in	3.15 mm	Female Socket	250 V	1	Header
Sullins Connector Solutions PPPC301LFBN	Flash	Phosphor Bronze	Square	Polyester	Push-Pull	0.1 "	2.54 mm	Black	Gold	3 A	30	-40 C	105 ░C	Flash	All	0.335 "	8.51 mm	Through Hole	Solder	UL94 V-0	Gold			Female Socket	250 V	1	Header	0.126 "	3.2 mm
