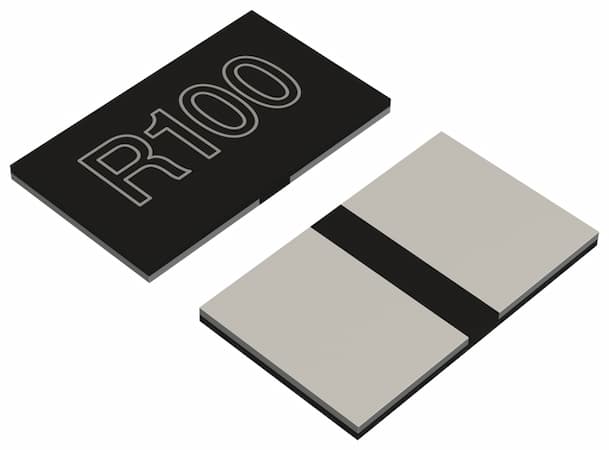

GMR320HJBFA10L0 Series

7142 (2817) size, 10W, 10mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Catalog

7142 (2817) size, 10W, 10mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Part	Temperature Coefficient	Number of Terminations	Tolerance	Package / Case	Package / Case	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Resistance	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Rohm Semiconductor GMR320HJBFA10L0	25 ppm/°C	2	1 %	2817	7142 Metric	Metal Element	170 °C	-65 ░C	2817	10 mOhms	10 W	7.1 mm	0.165 "	0.28 in	4.2 mm	Current Sense	0.022 in	0.55 mm

Catalog

7142 (2817) size, 10W, 10mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Key Features

• High heat dissipation, Excellent TCR characteristics, ROHM resistors have obtained ISO9001 / IATF16949 certification, Corresponds to AEC-Q200

Description

GMR320 series is ideal for current detection under high current circuit.It is ideal for sets that require high power, such as in-vehicle, industrial equipment, and large household appliances. In addition to stable resistance values under overcurrent loads, these products are highly accurate and reliable, achieving excellent resistance temperature coefficient (TCR) even in the low resistance range.
