Tdp0 Series Series

Ultra-miniature Surface Mount Half-pitch Side-Actuated DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Ultra-miniature Surface Mount Half-pitch Side-Actuated DIP

Part	Actuator Level	Pitch [x]	Pitch [x]	Termination Style	Number of Positions	Electrical Life	Actuator Type	Mechanical Life	Voltage Rating	Mounting Type	Contact Material	Body Material	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Length [custom]	Length [custom]	Contact Finish	Length	Length	Length [x]	Length [x]	Height Above Board [z]	Height Above Board [z]	Features
Littelfuse/Commercial Vehicle Products TDP04H1SBD1R	Raised	0.05 in	1.27 mm	Gull Wing	4	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm	0.244 in	6.2 mm	Gold
Littelfuse/Commercial Vehicle Products TDP02H0SBD1R	Flush Recessed	0.05 in	1.27 mm	Gull Wing	2	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold	3.67 mm	0.144 "

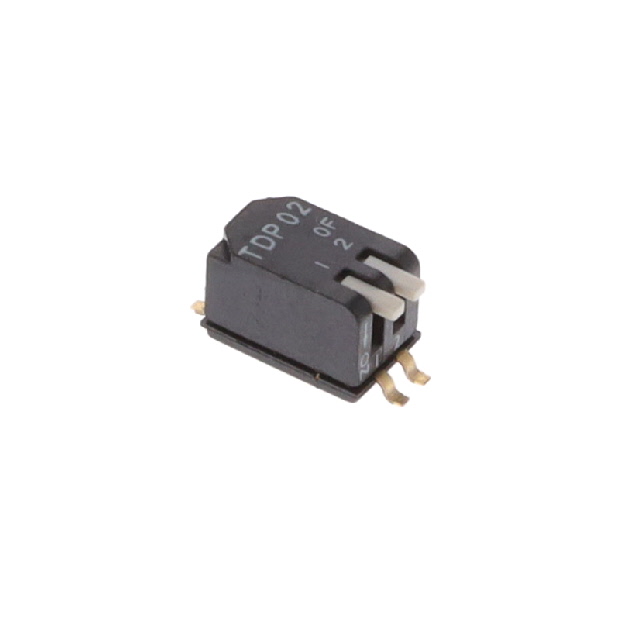

Littelfuse/Commercial Vehicle Products TDP02H1SBD1R	Raised	0.05 in	1.27 mm	Gull Wing	2	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold	3.67 mm	0.144 "
Littelfuse/Commercial Vehicle Products TDP10H0SBD1R	Flush Recessed	0.05 in	1.27 mm	Gull Wing	10	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C					Gold			0.544 in	13.82 mm	4.17 mm	0.164 in
Littelfuse/Commercial Vehicle Products TDP06H0SBD1	Flush Recessed	0.05 in	1.27 mm	Gull Wing	6		Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold	8.75 mm	0.344 "

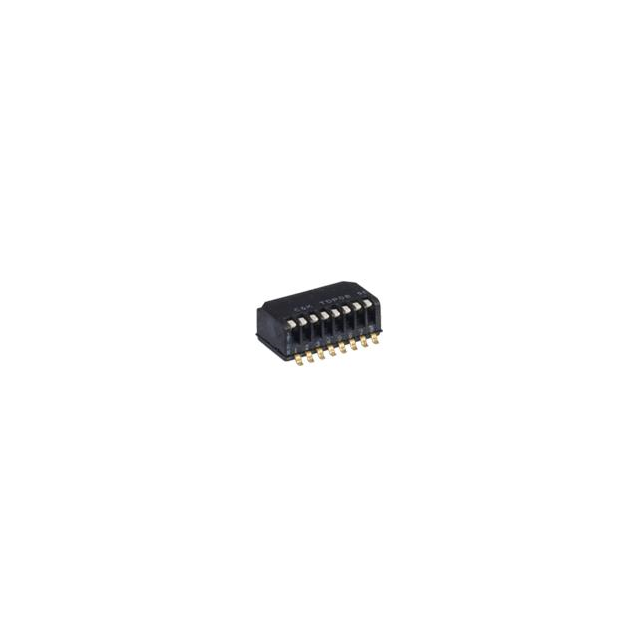

Littelfuse/Commercial Vehicle Products TDP06H1SBD1	Raised	0.05 in	1.27 mm	Gull Wing	6	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold	8.75 mm	0.344 "

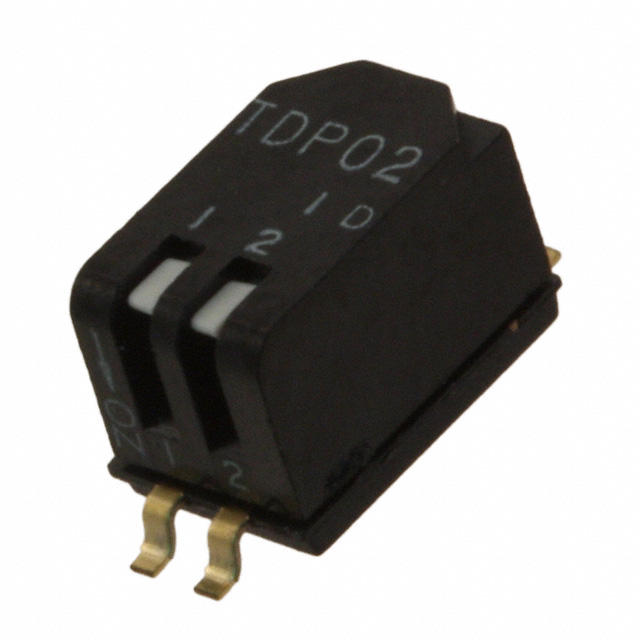

Littelfuse/Commercial Vehicle Products TDP02H0SBD1	Flush Recessed	0.05 in	1.27 mm	Gull Wing	2	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold	3.67 mm	0.144 "
Littelfuse/Commercial Vehicle Products TDP08H0SBD1R	Flush Recessed	0.05 in	1.27 mm	Gull Wing	8	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C	0.161 "	4.1 mm			Gold			0.444 in	11.28 mm

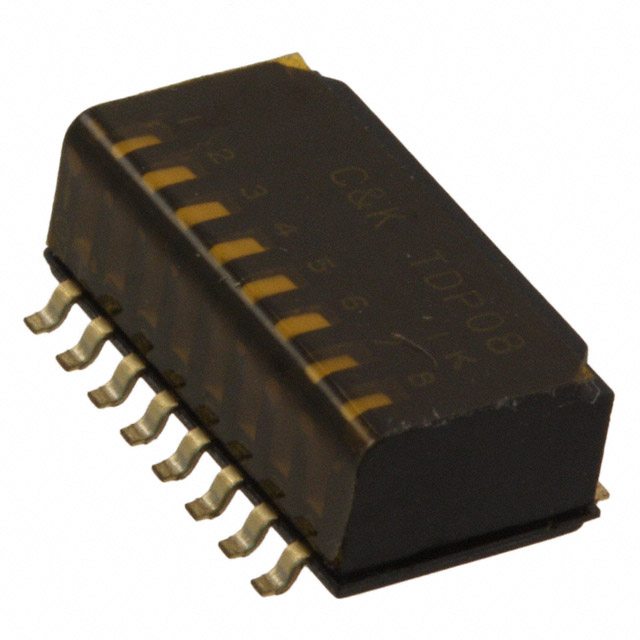

Littelfuse/Commercial Vehicle Products TDP08H0SB1	Flush Recessed	0.05 in	1.27 mm	Gull Wing	8	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C					Gold			0.444 in	11.28 mm	4.17 mm	0.164 in	Tape Seal
Littelfuse/Commercial Vehicle Products TDP08H0SB1R	Flush Recessed	0.05 in	1.27 mm	Gull Wing	8	1000 Cycles	Piano	1000 Cycles	24 VDC	Surface Mount Right Angle	Copper Alloy	Polyphenylene Sulfide (PPS) Glass Filled	SPST	25 mA	85 °C	-40 °C					Gold					4.17 mm	0.164 in

Catalog

Ultra-miniature Surface Mount Half-pitch Side-Actuated DIP

Key Features

• First ultra-miniature SMT half-pitch side-actuated DIP

• Side actuation allows visual indication of on/off position in horizontal applications

• Process sealed for surface mount soldering and washable processing

Description

C&K’s TDP series of ultra-miniature surface mount half-pitch side-actuated DIP switches are used by designers in portable and hand-held electronic devices as well as various instrumentation and control applications. The TDP series are attractive to designers because they are process sealed for surface mount soldering and washable processing and come with side actuation to allow for visual indication of the on/off position in horizontal applications.
