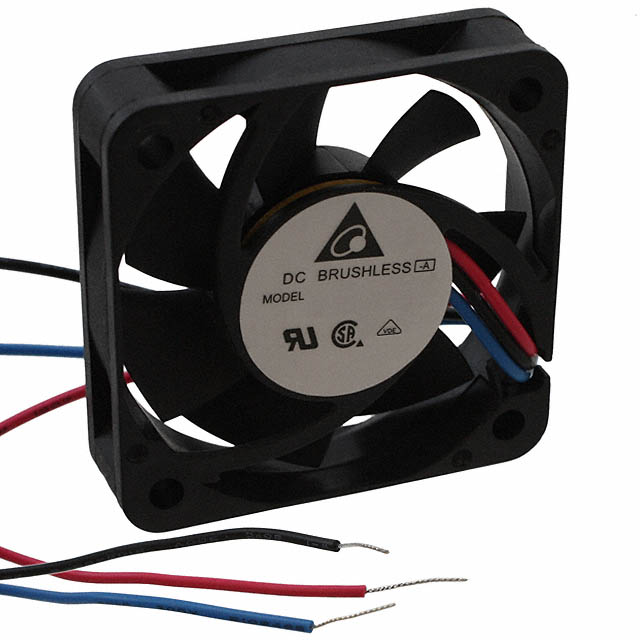

ASB0412 Series

Catalog

FAN AXIAL 40X10MM 12VDC WIRE

Part	Material - Frame	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Current Rating (Amps)	Noise	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Width [y]	Fan Type	Approval Agency	Termination	Size / Dimension [x]	Size / Dimension [z]	Static Pressure	Static Pressure	RPM	Power (Watts)	Features	Weight	Weight	Voltage - Rated	Size / Dimension	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
Delta Electronics ASB0412HHA-AF00	Plastic	Plastic	13.8 VDC	7 V	30000 Hrs	60 mA	29.5 dB(A)	Sleeve	70 °C	-10 °C	0.23 mł/min	8.2 CFM	10 mm	Tubeaxial	CE CSA UL VDE	3 Wire Leads	40 mm	40 mm	47.3 Pa	0.19 in H2O	7000 RPM	720 mW	Locked Rotor Protection Speed Sensor (Tach)	13.61 g	0.03 lb	12 VDC

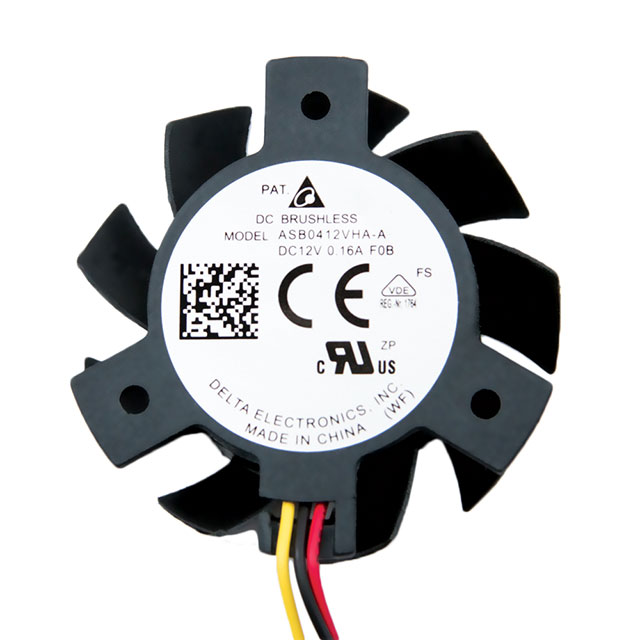

Delta Electronics ASB0412VHA-AF0B		Plastic	13.2 VDC	5 VDC	30000 Hrs	100 mA	28 dB	Sleeve	60 °C	-10 °C	0.087 m³/min	3.1 CFM	10.5 mm	Frameless Tubeaxial	CE cURus VDE	3 Wire Leads			28.8 Pa	0.116 in H2O	4800 RPM	1.2 W	Locked Rotor Protection Speed Sensor (Tach)	11.34 g	0.025 lb	12 VDC	Round	38 mm
Delta Electronics ASB0412VHA-AF00	Plastic	Plastic	13.8 VDC	7 V	30000 Hrs		32.5 dB	Sleeve	70 °C	-10 °C	0.266 m³/min	9.5 CFM	10 mm	Tubeaxial	CE CSA UL VDE	3 Wire Leads	40 mm	40 mm	63 Pa	0.253 in H2O	8000 RPM	960 mW	Locked Rotor Protection Speed Sensor (Tach)	13.61 g	0.03 lb	12 VDC
Delta Electronics ASB0412SA-00	Plastic	Plastic	13.2 VDC	10.8 VDC	80000 Hrs	70 mA	33.5 dB(A)	Sleeve	90 °C	-20 ░C	0.249 mł/min	8.9 CFM	10.4 mm	Tubeaxial		3 Wire Leads	40 mm	40 mm	58 Pa	0.233 in H2O	8000 RPM	840 mW	Locked Rotor Protection Speed Sensor (Tach)	13.61 g	0.03 lb	12 VDC			90 °C	-4 °F

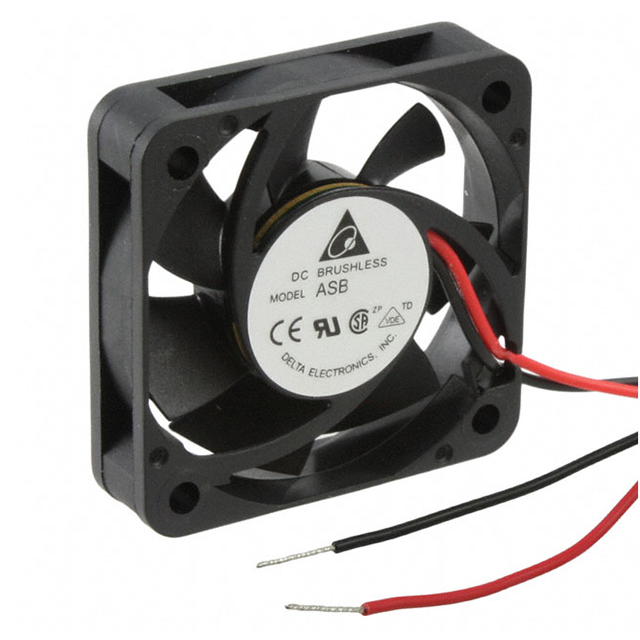

Delta Electronics ASB0412HA-A	Plastic	Plastic	13.8 VDC	7 V	30000 Hrs	50 mA	26 dB	Sleeve	70 °C	-10 °C	0.193 m³/min	6.9 CFM	10 mm	Tubeaxial	CE CSA UL VDE	2 Wire Leads	40 mm	40 mm	34.9 Pa	0.14 in H2O	6000 RPM	600 mW		13.61 g	0.03 lb	12 VDC
