H11AV1AM Series

6-Pin DIP High BVceo 0.4" Leadform Phototransistor Output Optocoupler

Catalog

6-Pin DIP High BVceo 0.4" Leadform Phototransistor Output Optocoupler

Part	Mounting Type	Number of Channels	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Current Transfer Ratio (Max)	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ) [Max]	Current Transfer Ratio (Min) [Min]	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Input Type	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Package / Case	Package / Case	Package / Case
ON Semiconductor H11AV1AVM	Through Hole	1	6-DIP	1.18 V	300 %	15 µs	15 µs	100 %	70 V	100 °C	-40 °C	400 mV	DC	4170 Vrms	60 mA	6-DIP	0.3 in	7.62 mm

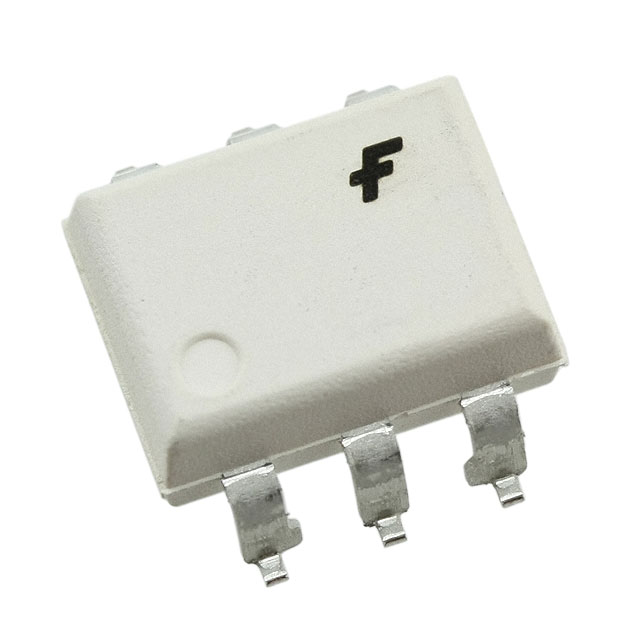

ON Semiconductor H11AV1SR2M	Surface Mount	1	6-SMD	1.18 V	300 %	15 µs	15 µs	100 %	70 V	100 °C	-40 °C	400 mV	DC	4170 Vrms	60 mA	6-SMD Gull Wing
ON Semiconductor H11AV1AVM	Through Hole	1	6-DIP	1.18 V	300 %	15 µs	15 µs	100 %	70 V	100 °C	-40 °C	400 mV	DC	4170 Vrms	60 mA	6-DIP	0.3 in	7.62 mm
ON Semiconductor H11AV1SM	Surface Mount	1	6-SMD	1.18 V	300 %	15 µs	15 µs	100 %	70 V	100 °C	-40 °C	400 mV	DC	4170 Vrms	60 mA	6-SMD Gull Wing
ON Semiconductor H11AV1SM	Surface Mount	1	6-SMD	1.18 V	300 %	15 µs	15 µs	100 %	70 V	100 °C	-40 °C	400 mV	DC	4170 Vrms	60 mA	6-SMD Gull Wing

Catalog

6-Pin DIP High BVceo 0.4" Leadform Phototransistor Output Optocoupler

Key Features

• H11AV1M features 0.3" input-output lead spacing

• H11AV1AM features 0.4" input-output lead spacing

• UL recognized (File #E90700, Vol. 2)

• VDE recognized (File #102497)

• Add option V (e.g., H11AV1AVM)

Description

The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line white package
