SA56-11 Series

Catalog

DISPLAY 7SEG 0.56" SGL YLW 10DIP

Part	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Millicandela Rating	Package / Case	Package / Case	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Display Type	Number of Characters	Wavelength - Peak	Common Pin	Color	Current - Test
Kingbright SA56-11YWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	6.5 mcd	0.6 in 15.24 mm	10-DIP	2.1 V	75 mw	7-Segment	1	590 nm	Common Anode	Yellow	20 mA

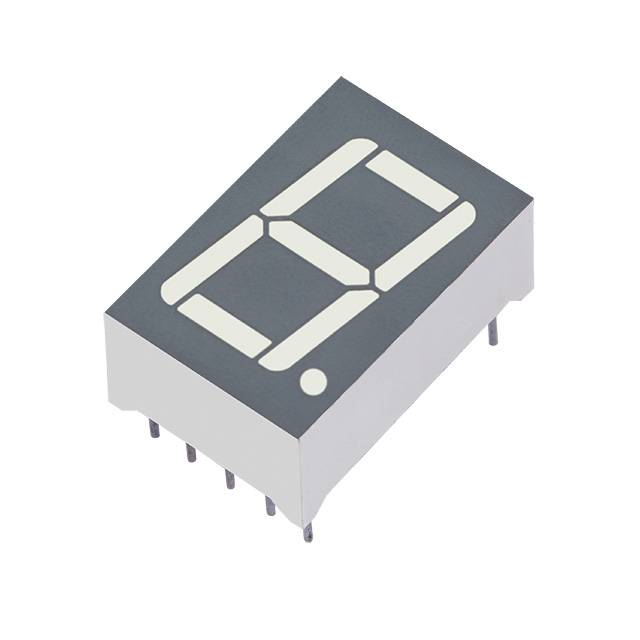

Kingbright SA56-11CGKWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	35 mcd	0.6 in 15.24 mm	10-DIP	2.1 V	75 mw	7-Segment	1		Common Anode	Green	20 mA

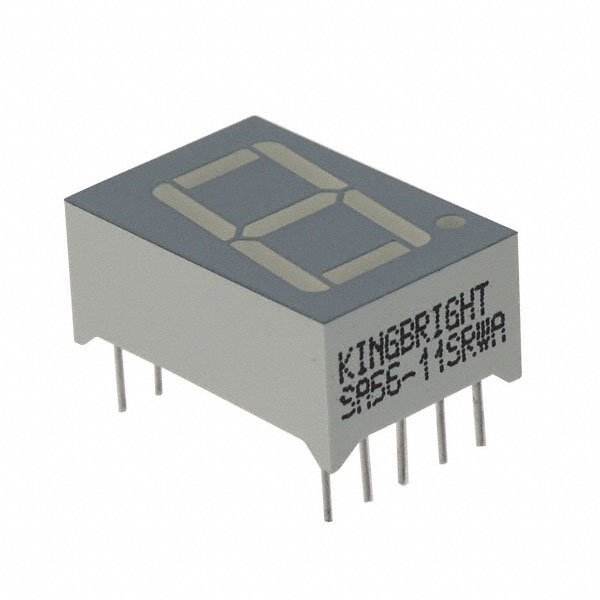

Kingbright SA56-11SRWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	34 mcd	0.6 in 15.24 mm	10-DIP	1.85 V	75 mw	7-Segment	1	660 nm	Common Anode	Red	20 mA

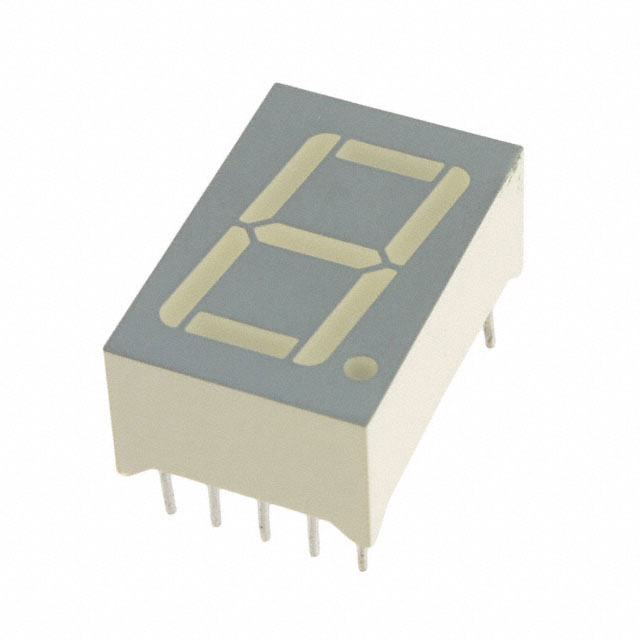

Kingbright SA56-11EWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm		0.6 in 15.24 mm	10-DIP	2 V	75 mw	7-Segment	1	627 nm	Common Anode	Red	20 mA

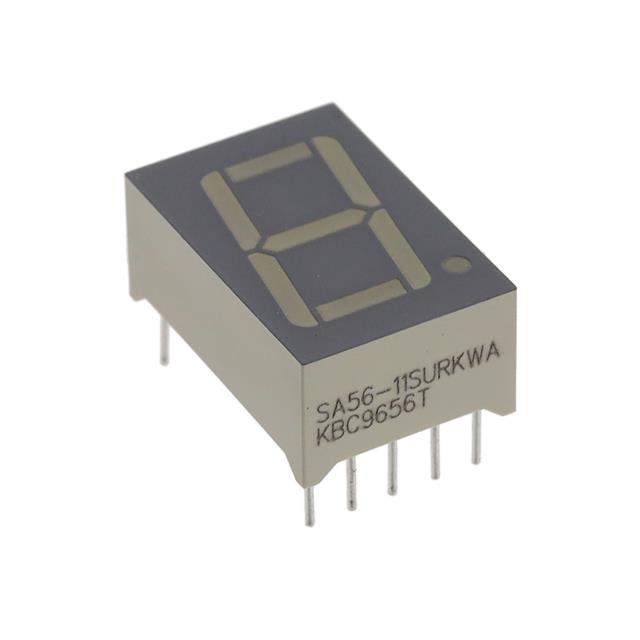

Kingbright SA56-11SURKWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	97 mcd	0.6 in 15.24 mm	10-DIP	1.95 V	75 mw	7-Segment	1	645 nm	Common Anode	Red	20 mA

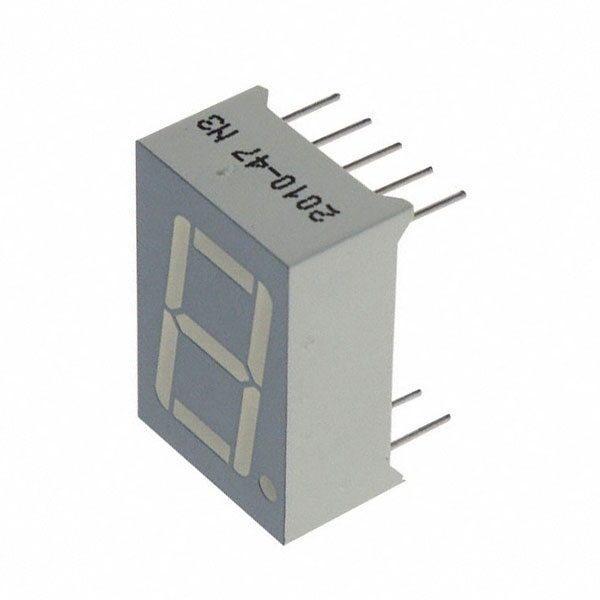

Kingbright SA56-11GWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	11 mcd	0.6 in 15.24 mm	10-DIP	2.2 V	62.5 mW	7-Segment	1	565 nm	Common Anode	Green	20 mA
Kingbright SA56-11SYKWA	0.56 in	14.22 mm	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	160 mcd	0.6 in 15.24 mm	10-DIP	2 V	75 mw	7-Segment	1	590 nm	Common Anode	Yellow	20 mA
