PE0201F Series

Manufacturer: YAGEO

Catalog

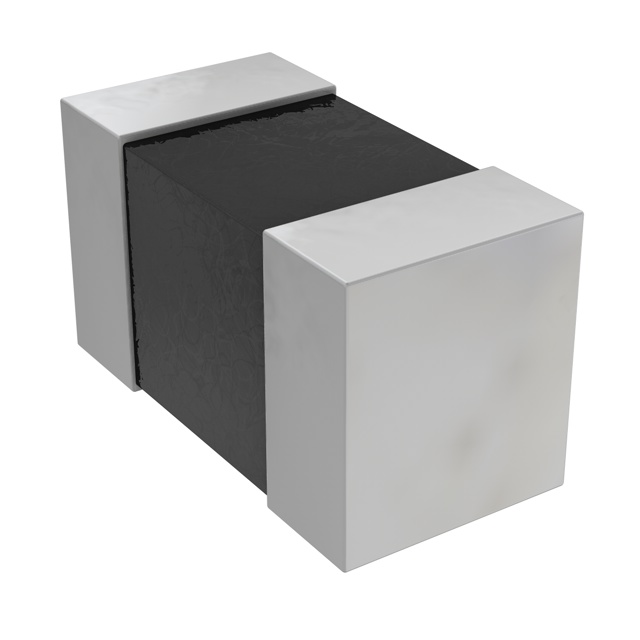

SMD CURRENT SENSE RESISTOR, 0.05 OHM, PE_L SERIES, 0201 [0603 METRIC], 100 MW, ± 1%, METAL FILM

Part	Ratings	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Tolerance	Composition	Features	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Power (Watts)	Power (Watts)
YAGEO PE0201FRF7W0R05L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	100 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	0.05 Ohms	0.1 W	0.1 W
YAGEO PE0201FRF7W0R51L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	100 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	510 mOhms	0.1 W	0.1 W
YAGEO PE0201FRJ070R05L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	350 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	0.05 Ohms	50 mW	0.05 W
YAGEO PE0201FRF7W0R15L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	100 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	0.15 Ohms	0.1 W	0.1 W
YAGEO PE0201FRF7W0R2L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	100 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	200 mOhms	0.1 W	0.1 W
YAGEO PE0201FRF7W0R5L	AEC-Q200	0603 Metric	0201	0.31 mm	0.012 "	100 ppm/°C	1 %	Metal Film	Automotive AEC-Q200 Current Sense	-55 C	125 °C	0201	2	0.012 in	0.024 "	0.31 mm	0.6 mm	500 mOhms	0.1 W	0.1 W
