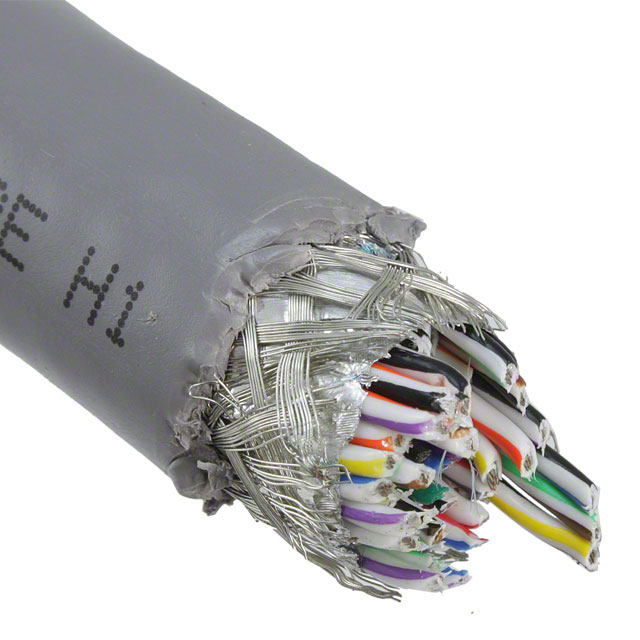

5110/70C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 70COND 22AWG SHLD
| Part | Shield Material | Shield Coverage | Cable Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Number of Conductors | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Features | Wire Gauge | Conductor Material | Usage | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Multi-Conductor | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | ISO 10993 UL Style 2464 | 70 | Slate | Braid Foil | 16 mm | 0.63 in | 300 VDC | Biological Compatibility Drain Wire Rip Cord | 22 AWG | Copper Tinned | Communication Control | 304.8 m | 1000 ft | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Multi-Conductor | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | ISO 10993 UL Style 2464 | 70 | Slate | Braid Foil | 16 mm | 0.63 in | 300 VDC | Biological Compatibility Drain Wire Rip Cord | 22 AWG | Copper Tinned | Communication Control | 100 ft | 30.5 m | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | Multi-Conductor | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 0.053 " | 1.346 mm | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | ISO 10993 UL Style 2464 | 70 | Slate | Braid Foil | 16 mm | 0.63 in | 300 VDC | Biological Compatibility Drain Wire Rip Cord | 22 AWG | Copper Tinned | Communication Control |
