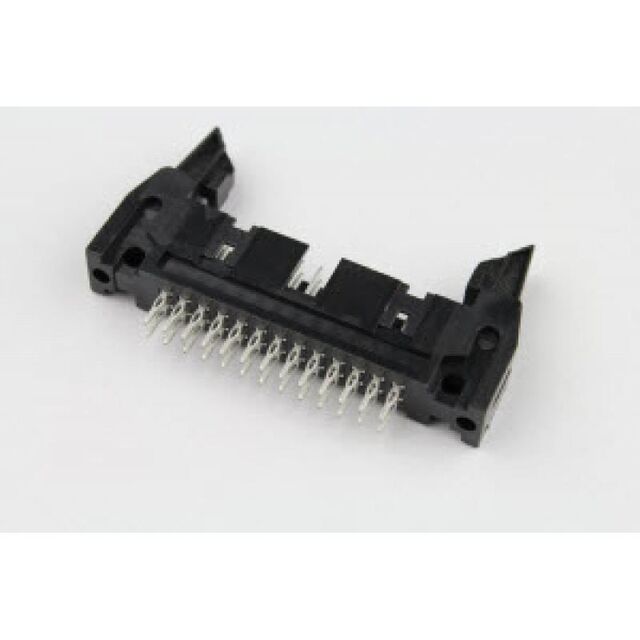

AWHW-254-34 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
DIN 41651
| Part | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Contact Shape | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Style | Connector Type | Current Rating (Amps) | Insulation Color | Number of Positions Loaded | Insulation Material | Mounting Type | Features | Contact Material | Termination | Number of Rows [custom] | Fastening Type | Shrouding | Contact Type | Contact Finish - Mating | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | UL94 V-0 | 0.1 " | 2.54 mm | 22.1 mm | 0.87 " | Square | Flash | 6 mm | 0.236 in | 34 | -40 C | 105 ░C | 0.126 " | 3.2 mm | 0.1 in | 2.54 mm | Board to Cable/Wire | Header | 3 A | Black | All | Glass Filled Nylon 9T Polyamide (PA9T) | Through Hole | Polarizing Key | Brass | Solder | 2 | Latch Lock/Eject Hooks | Shrouded - 4 Wall | Male Pin | Gold | |||||
 Assmann WSW Components | UL94 V-0 | 0.1 " | 2.54 mm | Square | Flash | 6 mm | 0.236 in | 34 | -40 C | 105 ░C | 0.1 in | 2.54 mm | Board to Cable/Wire | Header | 3 A | All | Polybutylene Terephthalate (PBT) Glass Filled | Through Hole | Keying Slot | Brass | Press-Fit | 2 | Push-Pull | Shrouded - 4 Wall | Male Pin | Gold | 27.6 mm | 1.087 in | 4.6 mm | 0.181 in | Tin | |||||
Assmann WSW Components | ||||||||||||||||||||||||||||||||||||
Assmann WSW Components | UL94 V-0 | 0.1 " | 2.54 mm | 10.85 mm | 0.427 in | Square | Flash | 6 mm | 0.236 in | 34 | -40 C | 105 ░C | 0.126 " | 3.2 mm | 0.1 in | 2.54 mm | Board to Cable/Wire | Header | 3 A | Black | All | Glass Filled Nylon 9T Polyamide (PA9T) | Right Angle Through Hole | Keying Slot | Brass | Solder | 2 | Latch Lock/Eject Hooks | Shrouded - 4 Wall | Male Pin | Gold | |||||
Assmann WSW Components | UL94 V-0 | 0.1 " | 2.54 mm | 10.85 mm | 0.427 in | Square | Flash | 6 mm | 0.236 in | 34 | -40 C | 105 ░C | 0.126 " | 3.2 mm | 0.1 in | 2.54 mm | Board to Cable/Wire | Header | 3 A | Black | All | Glass Filled Nylon 9T Polyamide (PA9T) | Right Angle Through Hole | Brass | Solder | 2 | Latch Lock/Eject Hooks | Shrouded - 4 Wall | Male Pin | Gold |
