892-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Type	Gender	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Pitch	Pitch	Color	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions/Bay/Row	Contact Material	Read Out	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 892-096-521-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-096-520-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-096-556-212	Polyphenylene Sulfide (PPS)	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Board Edge Straddle Mount	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 892-096-521-201	Polyphenylene Sulfide (PPS)	2				Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-096-540-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Through Hole	Cantilever	Female	Wire Wrap	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm

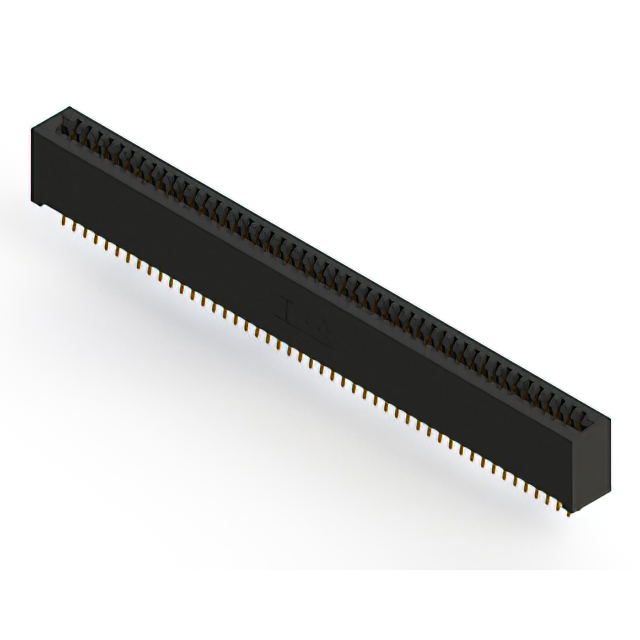

EDAC Inc. 892-096-556-201	Polyphenylene Sulfide (PPS)	2				Board Edge Straddle Mount	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 892-096-558-203	Polyphenylene Sulfide (PPS)	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Right Angle Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-096-523-212	Polyphenylene Sulfide (PPS)	2	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm

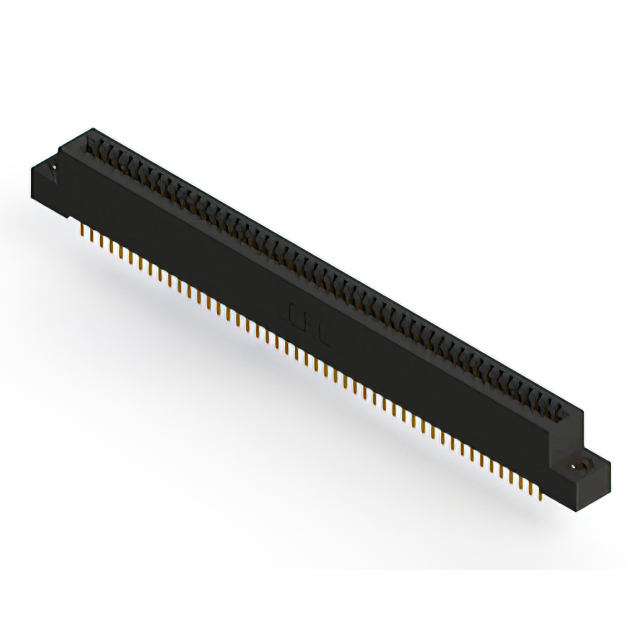

EDAC Inc. 892-096-521-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening			Through Hole	Cantilever	Female	Solder	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 892-096-500-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening			Through Hole	Cantilever	Female	Solder Eyelet(s)	125 °C	-40 C	Non Specified - Dual Edge	0.1 "	2.54 mm	Black	2	0.25 Ám	10 Áin	Gold	48	Copper Alloy	Dual	96	0.07 in 1.78 mm	0.054 in 1.37 mm
