T 3325 Series

Catalog

CONN PLUG FMALE 4P SOLDER CUP

Part	Shell Material	Orientation	Shell Size - Insert	Number of Positions	Fastening Type	Features	Contact Finish - Mating	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Voltage Rating	Connector Type	Primary Material	Shielding	Housing Color	Material Flammability Rating	Insert Material	Type	Contact Shape	Contact Size	Contact Type	Note	Shell Finish	Color

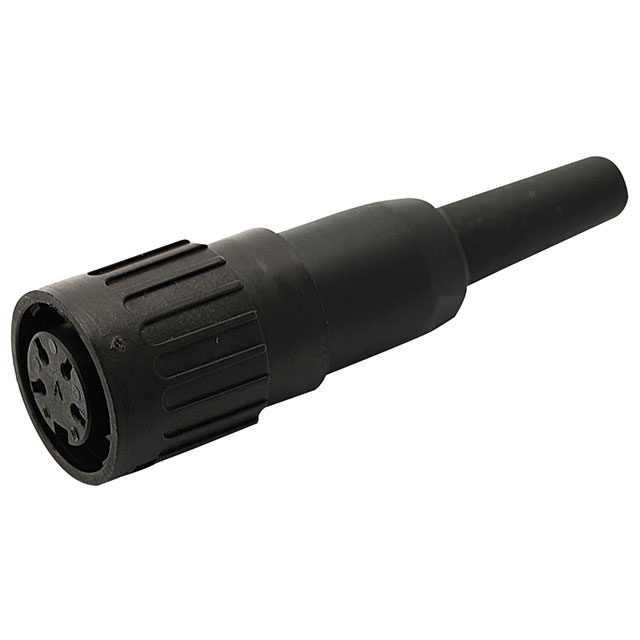

Amphenol Tuchel Industrial T 3325 501	Plastic	Keyed	M16-4	4	Bayonet Lock	Strain Relief	Silver	Free Hanging (In-Line)	10 A	-40 C	100 °C	IP40	250 V	Plug Female Sockets	Plastic

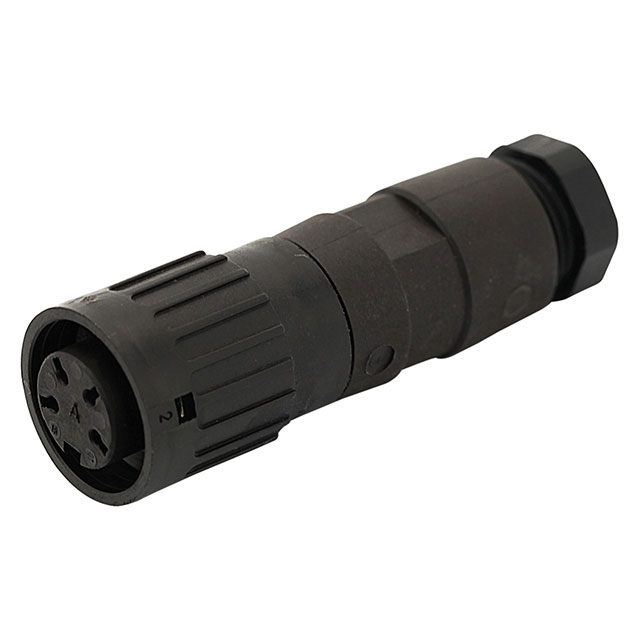

Amphenol Tuchel Industrial T 3325 551	Plastic	Keyed	M16-4	4	Bayonet Lock	Cable Clamp Coupling Nut Strain Relief		Free Hanging (In-Line)		-40 C	100 °C	IP40		Plug Housing		Unshielded	Black	UL94 V-0	Thermoplastic	For Female Sockets	Circular	1.5 mm	Crimp	Contacts Not Included

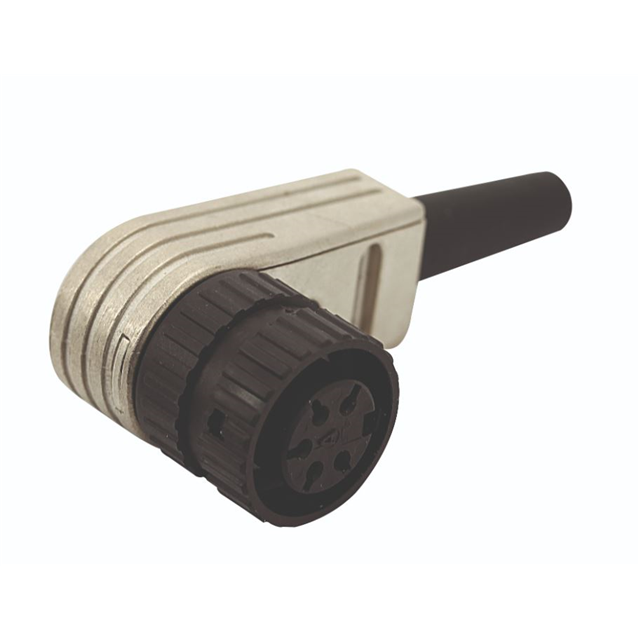

Amphenol Tuchel Industrial T 3325 005	Die Cast	Keyed	M16-4	4	Bayonet Lock	Strain Relief	Silver	Free Hanging (In-Line) Right Angle	10 A	-40 C	100 °C	IP40	250 V	Plug Female Sockets	Metal										Nickel	Silver
Amphenol Tuchel Industrial T 3325 552	Plastic	Keyed	M16-4	4	Bayonet Lock	Backshell Cable Clamp Coupling Nut		Free Hanging (In-Line)		-40 C	100 °C	IP40		Plug Housing		Unshielded	Black	UL94 V-0	Thermoplastic	For Female Sockets	Circular	1.5 mm	Crimp	Contacts Not Included
