09110012 Series

Catalog

MODULE FEMALE 1POS SCREW

Part	Contact Material	Voltage Rating	Contact Finish	Gender	Current Rating (Amps)	Connector Type	Housing Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Number of Positions

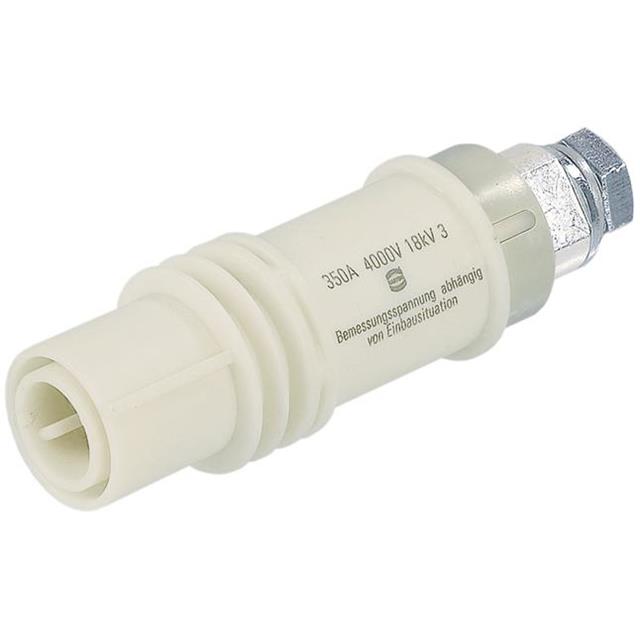

HARTING Technology Group 09110012755	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012772	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

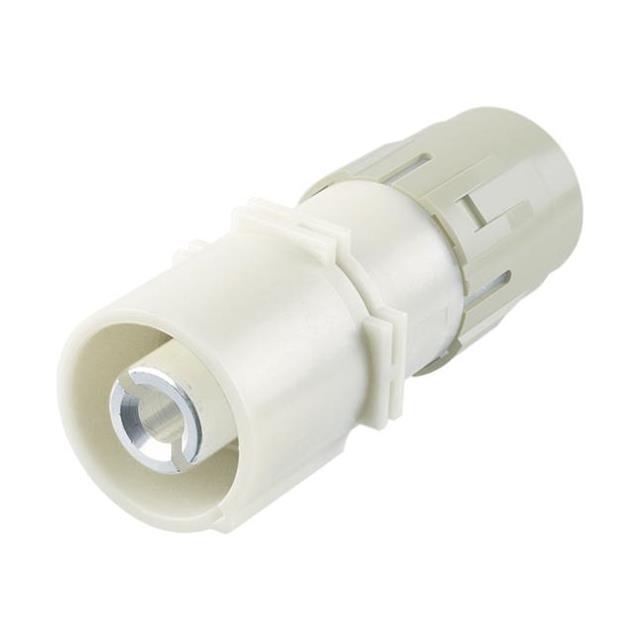

HARTING Technology Group 09110012670	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012671	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012672	Copper Alloy	4000 V	Silver	Male	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012651	Copper Alloy		Silver	Male	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

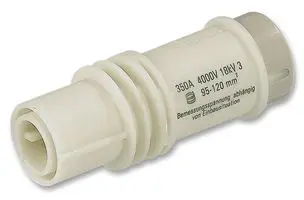

HARTING Technology Group 09110012751	Copper Alloy		Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
HARTING Technology Group 09110012771	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

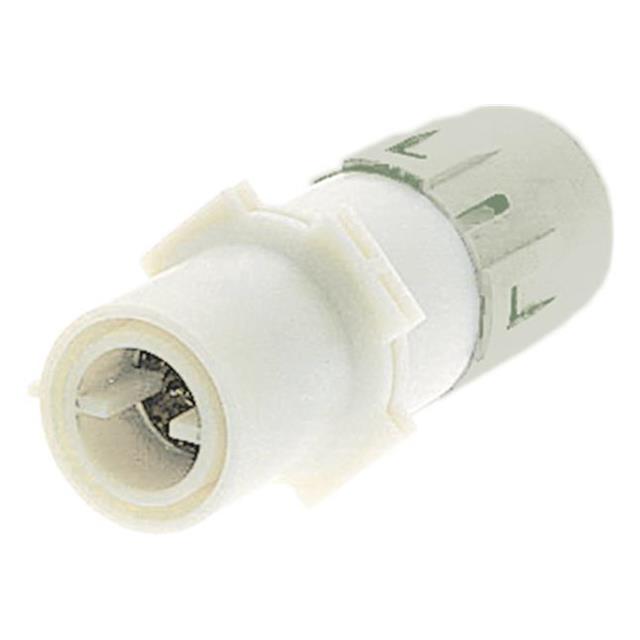

HARTING Technology Group 09110012770	Copper Alloy	4000 V	Silver	Female	650 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1

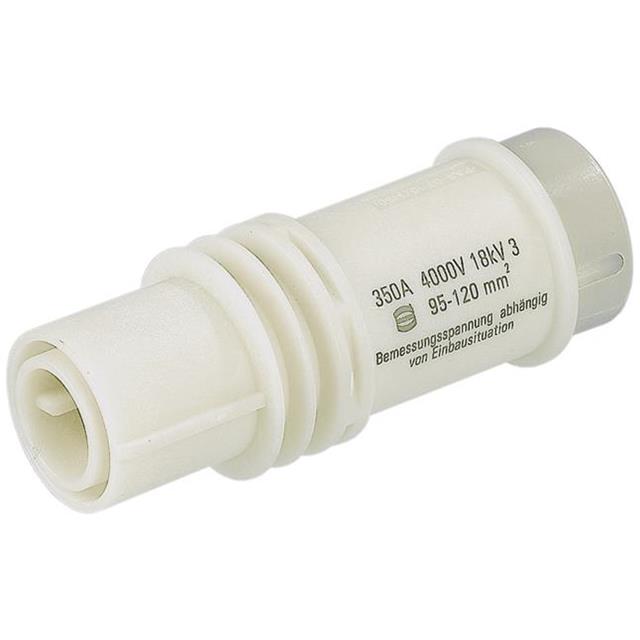

HARTING Technology Group 09110012750	Copper Alloy	4000 V	Silver	Female	350 A	Module	Polyamide (PA) Nylon	UL94 V-0	125 °C	-40 °C	Screw	1
