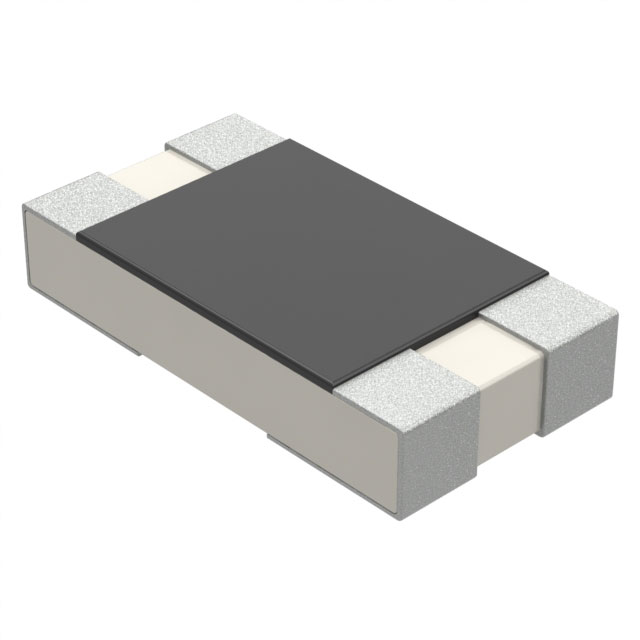

L4T Series
Manufacturer: Ohmite
Beta
⌘K
CURRENT SENSE RESISTORS - SMD 0.75W 0.015 OHM 0.5%
| Part | Package / Case | Resistance | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power (Watts) | Power (Watts) | Number of Terminations | Temperature Coefficient | Tolerance | Composition | Supplier Device Package | Supplier Device Package | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 2010 (5025 Metric) | 15 mOhms | Current Sense | 5 mm | 0.098 in | 0.197 in | 2.5 mm | 155 C | -55 C | 0.026 in | 0.65 mm | 3/4W | 0.75 W | 4 | 75 ppm/°C | 0.5 % | Thick Film | 2010 | ||
 Ohmite | 1206 (3216 Metric) | 10 mOhms | Current Sense | 3 mm | 0.063 " | 0.118 " | 1.6 mm | 155 C | -55 C | 0.026 in | 0.65 mm | 0.5 W | 4 | 75 ppm/°C | 0.5 % | Thick Film | 1206 | 0.5 W |
