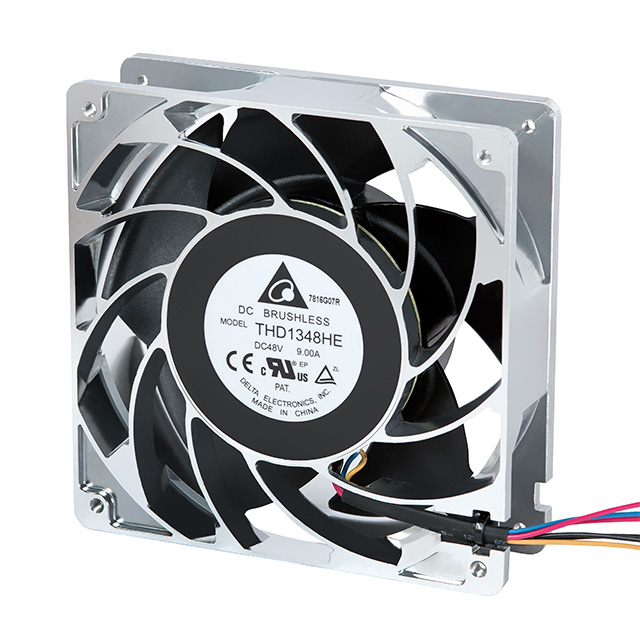

THD1348 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL 134X38MM 48VDC WIRE
| Part | Lifetime @ Temp. | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Fan Type | Weight | Weight | Bearing Type | Approval Agency | Noise | Static Pressure | Static Pressure | Power (Watts) | RPM | Features | Termination | Width [y] | Air Flow | Air Flow | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 70000 Hrs | Plastic | 36 VDC | 60 V | Aluminum | 5 A | 70 °C | -10 °C | 48 VDC | Tubeaxial | 1.6 lbs | 725.7 g | Ball | CE cURus TUV | 82 dB(A) | 7.1 in H2O | 1768.5 Pa | 240 Watts | 12500 RPM | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 4 Wire Leads | 38 mm | 13.72 mł/min | 490 CFM | 134 mm | 134 mm |
