317-022 Series
Manufacturer: EDAC Inc.
Beta
⌘K

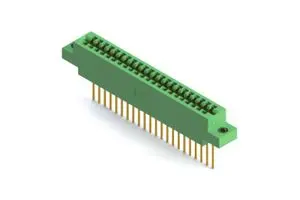

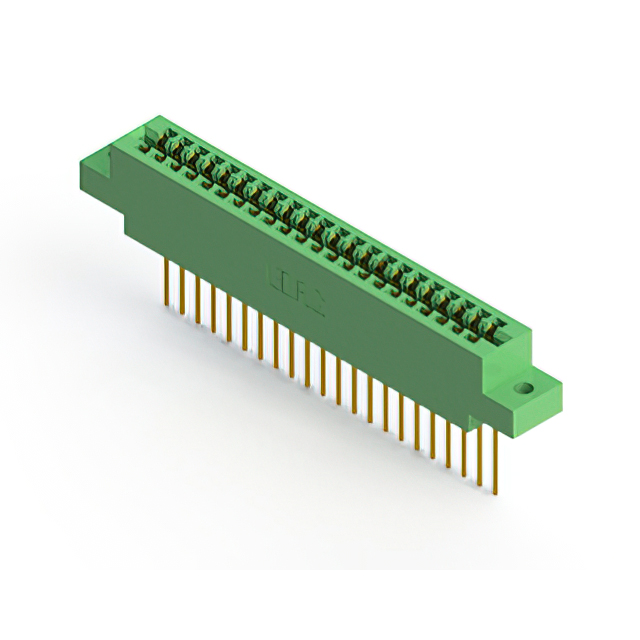

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 22 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Material - Insulation | Card Type | Flange Feature | Gender | Contact Finish | Color | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions/Bay/Row | Read Out | Contact Type | Number of Rows [custom] | Pitch | Pitch | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Female | Gold | Green | 22 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | -65 ░C | 125 °C | Copper Alloy | 11 | Dual | Cantilever | 2 | 3.96 mm | 0.156 in | Through Hole | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Floating Bobbin Flush Mount | Female | Gold | Green | 44 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | -65 ░C | 125 °C | Copper Alloy | 22 | Single | Cantilever | 2 | 3.96 mm | 0.156 in | Through Hole | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | Female | Gold | Green | 44 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | -65 ░C | 125 °C | Copper Alloy | 22 | Single | Cantilever | 2 | 3.96 mm | 0.156 in | Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Female | Gold | Green | 44 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | -65 ░C | 125 °C | Copper Alloy | 22 | Single | Cantilever | 2 | 3.96 mm | 0.156 in | Through Hole |
