TA Series

Manufacturer: Ohmite

Catalog

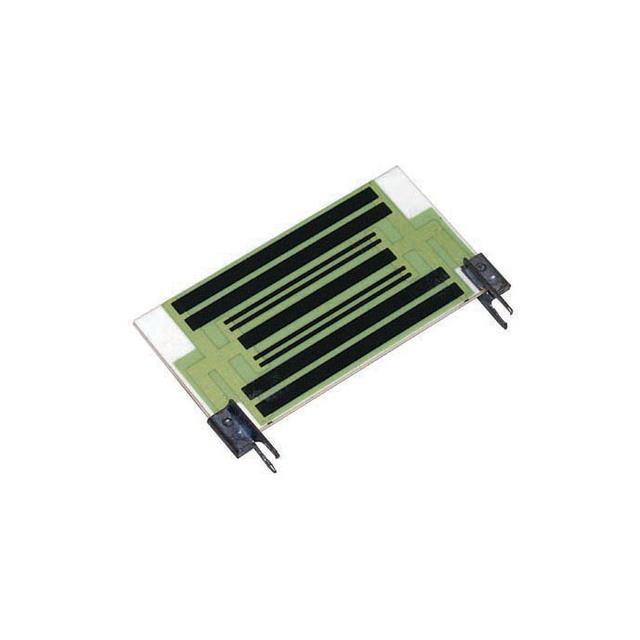

THICK FILM RESISTORS - THROUGH HOLE 10 W.POWER CHIP SIDE TERMINAL

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Package / Case	Composition	Resistance	Number of Terminations	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Ohmite TA810PW470RJE	1.085 "	0.24 "	6.1 mm	27.56 mm	50 ppm/░C	5 %	180 °C	-55 C	10 W	Radial	Thick Film	470 Ohms	4	Powerchip®	25.91 mm	1.02 in
Ohmite TA205PA27R0JE	0.5 "	0.1 in	2.54 mm	12.7 mm	100 ppm/°C	5 %	180 °C	-55 C	5 W	Radial	Thick Film	27 Ohms		Powerchip®	25.91 mm	1.02 in	2
Ohmite TA025PW51R0JE	2.22 "	0.24 "	6.1 mm	56.39 mm	100 ppm/°C	5 %	180 °C	-55 C	25 W	Radial	Thick Film	51 Ohms	4	Powerchip®				30.21 mm	1.189 in
Ohmite TA303PA75R0JE	0.5 "	0.1 in	2.54 mm	12.7 mm	100 ppm/°C	5 %	180 °C	-55 C	3 W	Radial	Thick Film	75 Ohms		Powerchip®	15.75 mm	0.62 in	2
Ohmite TA310PA200RJE	1 in	0.1 in	2.54 mm	25.4 mm	50 ppm/░C	5 %	180 °C	-55 C	10 W	Radial	Thick Film	200 Ohms	4	Powerchip®	25.91 mm	1.02 in	2	27.1 mm	1.067 in
Ohmite TA025PW300RJE	2.22 "	0.24 "	6.1 mm	56.39 mm	50 ppm/░C	5 %	180 °C	-55 C	25 W	Radial	Thick Film	300 Ohms	4	Radial	29.7 mm	1.169 in
Ohmite TA205PA3R30JE	0.5 "	0.1 in	2.54 mm	12.7 mm	100 ppm/°C	5 %	180 °C	-55 C	5 W	Radial	Thick Film	3.3 Ohms		Powerchip®	25.91 mm	1.02 in	2
Ohmite TA305PA18K0JE	0.5 "	0.1 in	2.54 mm	12.7 mm	50 ppm/░C	5 %	180 °C	-55 C	5 W	Radial	Thick Film	18 kOhms		Powerchip®	25.91 mm	1.02 in	2
Ohmite TA305PA7K50JE	0.5 "	0.1 in	2.54 mm	12.7 mm	50 ppm/░C	5 %	180 °C	-55 C	5 W	Radial	Thick Film	7.5 kOhms		Powerchip®	25.91 mm	1.02 in	2
Ohmite TA305PA12R0JE	0.5 "	0.1 in	2.54 mm	12.7 mm	100 ppm/°C	5 %	180 °C	-55 C	5 W	Radial	Thick Film	12 Ohms		Powerchip®	25.91 mm	1.02 in	2
