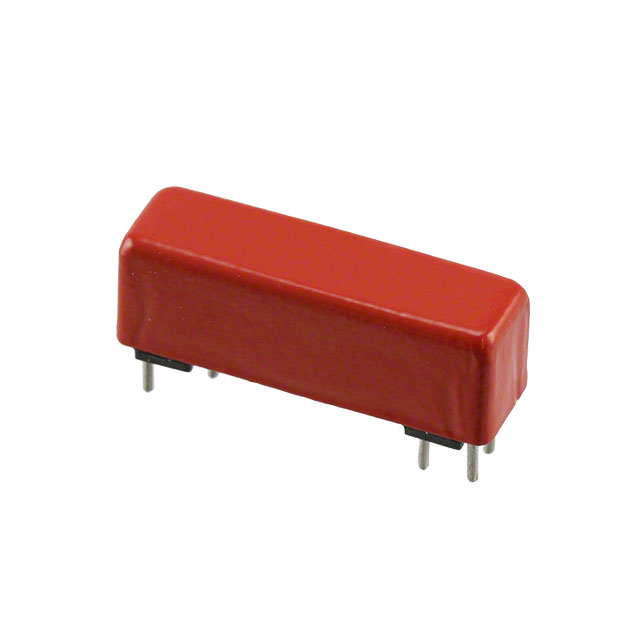

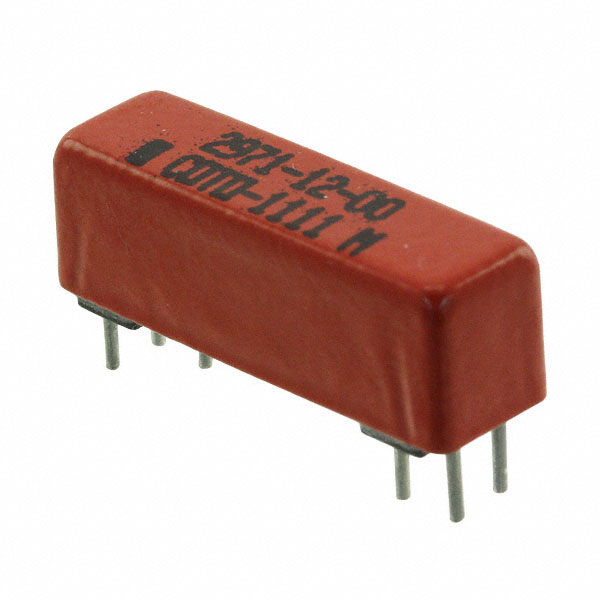

2971 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K
RELAY MPAQ HIGH TEMP 1 FORM C CD REV. 00 BOM/MFG REV.NPR/NPR /TUBE
| Part | Coil Resistance | Mounting Type | Contact Rating (Current) | Switching Voltage | Termination Style | Coil Type | Contact Form | Release Time | Coil Voltage | Operate Time | Must Operate Voltage | Must Release Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 1.5 kOhms | Through Hole | 250 mA | 150 VDC 150 VAC | PC Pin | Non Latching | SPDT (1 Form C) | 2 ms | 12 VDC | 1 ms | 6.7 VDC | 1 VDC | 125 °C | -40 C | |
 COTO TECHNOLOGY | 230 Ohms | Through Hole | 250 mA | 150 VDC 150 VAC | PC Pin | Non Latching | SPDT (1 Form C) | 2 ms | 5 VDC | 1 ms | 2.5 VDC | 0.4 VDC | 125 °C | -40 C | 21.7 mA |
