5180-2SG Series

Catalog

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Fastening Type	Color	Shielding	Connector Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Contact Material	Mounting Type	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Backshell Material, Plating	Number of Positions	Primary Material	Termination	Voltage Rating	Orientation	Ingress Protection
SWITCHCRAFT/CONXALL 5180-2SG-528	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell Cable Clamp	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	7.11 mm	0.29 in	0.28 in	7.37 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-521	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell Cable Clamp	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	5.33 mm	0.23 in	0.21 in	5.84 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight

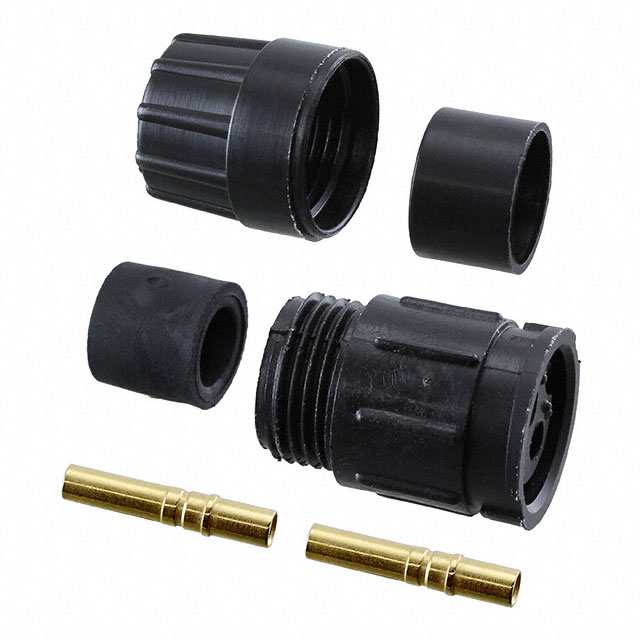

SWITCHCRAFT/CONXALL 5180-2SG-315	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	3.81 mm	0.17 in	0.15 "	4.32 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-515	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell Cable Clamp	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	3.81 mm	0.17 in	0.15 "	4.32 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-518	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell Cable Clamp	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	4.57 mm	0.2 "	0.18 "	5.08 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-321	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	5.33 mm	0.23 in	0.21 in	5.84 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-324	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	6.1 mm	0.27 "	0.24 "	6.86 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-530	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell Cable Clamp	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)	7.62 mm	0.32 in	0.3 in	8.13 mm	Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
SWITCHCRAFT/CONXALL 5180-2SG-3DC	Bayonet Lock	Black	Unshielded	Receptacle Female Sockets	Backshell	115 °C	-40 C	Gold	Brass	Free Hanging (In-Line)					Nylon Polyamide (PA)	2	Plastic	Crimp	600 V	Keyed	Weathertight
