COM-16 Series
Manufacturer: SparkFun
Beta
⌘K
LED RGB CLEAR 5MM T/H
| Part | Viewing Angle | Lens Transparency | Mounting Type | Supplier Device Package | Millicandela Rating [custom] | Millicandela Rating [custom] | Millicandela Rating [custom] | Current - Test | Voltage - Forward (Vf) (Typ) | Configuration | Height (Max) [z] | Wavelength - Dominant | Color | Package / Case | Lens Size [diameter] | Lens Style | Release Time | Contact Material | Relay Type | Seal Rating | Coil Type | Switching Voltage | Contact Rating (Current) | Must Release Voltage | Operate Time | Coil Resistance | Coil Insulation | Contact Form | Approval Agency | Termination Style | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SparkFun | 10 ° | Clear | Through Hole | 5 mm | 1400 mcd | 700 mcd | 1200 mcd | 20mA Blue 20mA Green 20mA Red | 2 V 3.1 V 3.2 V | Common Cathode | 4.8 mm | 468nm Blue 517nm Green 623nm Red | Blue Green Red | Radial - 4 Leads | 4.85 mm | Round with Domed Top | ||||||||||||||||||

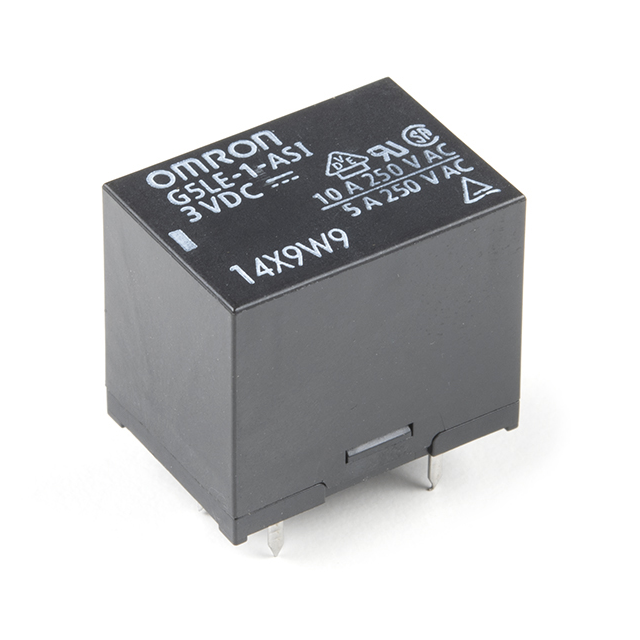

 SparkFun | Through Hole | 5 ms | Silver Tin Oxide (AgSnO) | General Purpose | Sealed - Flux Protection | Non Latching | 125 VDC 250 VAC | 10 A | 0.3 VDC | 10 ms | 22.5 Ohms | Class B | SPDT (1 Form C) | CSA TUV UR VDE | PC Pin | 2.25 VDC | 85 °C | -25 °C | 133 mA |
