WF200 Series

Catalog

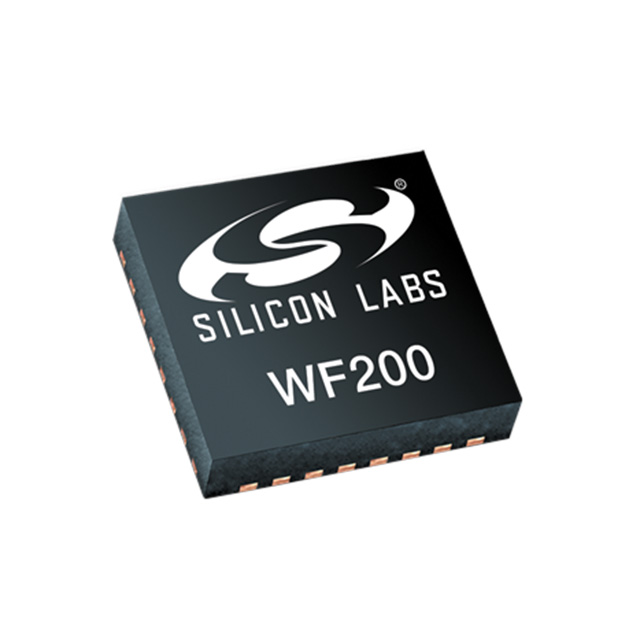

IC RF TXRX+MCU WIFI 32QFN

Part	RF Family/Standard	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Supplier Device Package	Sensitivity	Type	Data Rate (Max) [Max]	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Frequency [Min]	Frequency [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Current - Transmitting [Min]	Current - Transmitting [Max]	Power - Output	Modulation
SILICON LABS WF200SCR	WiFi	2.4 GHz	-40 C	105 ░C	32-UFQFN Exposed Pad	32-QFN (4x4)	-96.5 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.3 V	1.8 V	Surface Mount
SILICON LABS WF200C	WiFi	2.4 GHz	-40 C	105 ░C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.5 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.3 V	1.8 V	Surface Mount
SILICON LABS WF200CR	WiFi	2.4 GHz	-40 C	105 ░C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.5 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.3 V	1.8 V	Surface Mount
SILICON LABS WF200D	WiFi		-40 °C	105 °C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.7 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.6 V	1.62 V	Surface Mount	2.412 GHz	2.484 GHz	41.6 mA	47.6 mA	44.6 mA	108 mA	17 dBm	DSSS
SILICON LABS WF200SC	WiFi	2.4 GHz	-40 C	105 ░C	32-UFQFN Exposed Pad	32-QFN (4x4)	-96.5 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.3 V	1.8 V	Surface Mount
SILICON LABS WF200DR	WiFi		-40 °C	105 °C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.7 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.6 V	1.62 V	Surface Mount	2.412 GHz	2.484 GHz	41.6 mA	47.6 mA	44.6 mA	108 mA	17 dBm	DSSS
SILICON LABS WF200SD	WiFi		-40 °C	105 °C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.7 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.6 V	1.62 V	Surface Mount	2.412 GHz	2.484 GHz	41.6 mA	47.6 mA	44.6 mA	108 mA	17 dBm	DSSS
SILICON LABS WF200SDR	WiFi		-40 °C	105 °C	32-VFQFN Exposed Pad	32-QFN (4x4)	-96.7 dBm	TxRx + MCU	72.2 Mbps	802.11b/g/n	3.6 V	1.62 V	Surface Mount	2.412 GHz	2.484 GHz	41.6 mA	47.6 mA	44.6 mA	108 mA	17 dBm	DSSS
