PSAW65I Series

Catalog

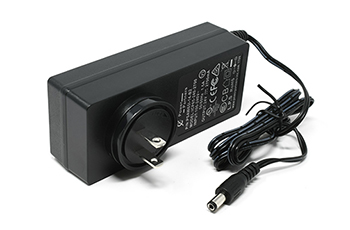

WALL MOUNT POWER SUPPLY 15V 60 WATT

Part	No Load Power Consumption	Operating Temperature [Max]	Current - Output (Max) [Max]	Voltage - Output	Standard Number	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Cord Length	Cord Length	Power (Watts)	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Input Type	Input Connector	Form	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Polarization	Current - Output (Max)
TT Electronics/BI PSAW65I-13-B1	210 mW	60 °C	4.33 A	15 V	60950-1	264 VAC	90 VAC	North America	47 in	1.2 m	65 W	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	50.3 mm	35.6 mm	117.3 mm	1.4 "	4.62 in	1.98 "	CB CCC CE cULus FCC PSE
TT Electronics/BI PSAW65I-14-B1	210 mW	60 °C	2.7 A	24 V	62368-1	264 VAC	90 VAC	International	47 in	1.2 m	65 W	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Multi-Blade (Single Blade Included)	Multi-Blade (Included)	Wall Mount	Level VI	50.3 mm	35.6 mm	117.3 mm	1.4 "	4.62 in	1.98 "	CB CCC CE cULus FCC PSE TUV	Positive Center
TT Electronics/BI PSAW65I-18-B1	210 mW	60 °C	1.35 A	48 V	60950-1	264 VAC	90 VAC	North America	47 in	1.2 m	65 W	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	50.3 mm	35.6 mm	117.3 mm	1.4 "	4.62 in	1.98 "	CB CCC CE cULus FCC PSE
TT Electronics/BI PSAW65I-12-B1	210 mW	60 °C		12 V	60950-1	264 VAC	90 VAC	North America	47 in	1.2 m	60 W	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	Fixed Blade	NEMA 1-15P	Wall Mount	Level VI	50.3 mm	35.6 mm	117.3 mm	1.4 "	4.62 in	1.98 "	CB CCC CE cULus FCC PSE		5 A
