VA Series

Catalog

TVS VARISTOR, 34 V, 48 V, TRANSGUARD SERIES, 100 V, AXIAL LEADED, MULTILAYER VARISTOR (MLV)

Part	Package / Case	Capacitance @ Frequency	Maximum DC Volts [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Number of Circuits	Current - Surge	Mounting Type	Maximum AC Volts [Max]	Varistor Voltage (Min) [Min]	Energy	Varistor Voltage (Max) [Max]	Varistor Voltage (Max)

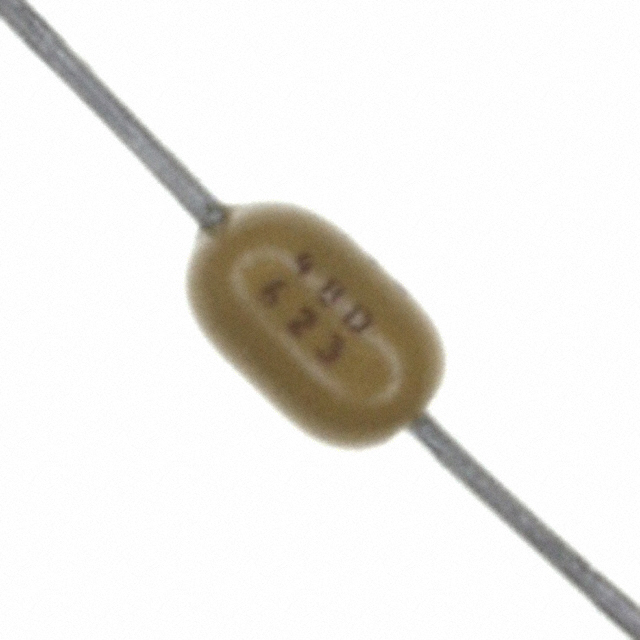

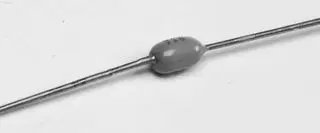

KYOCERA AVX VA100048D101DL	Axial	200 pF	48 V	125 °C	-55 °C	62 V	1	100 A	Through Hole	34 V	55.8 V	0.4 J	68.2 V

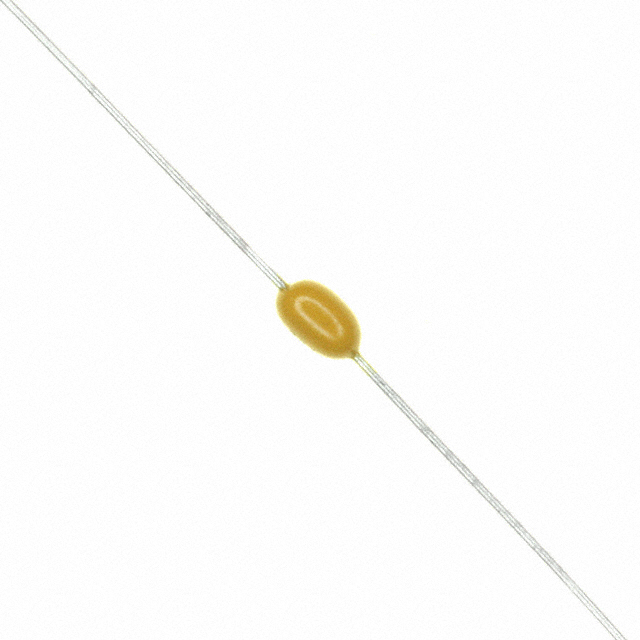

KYOCERA AVX VA100030D650DL	Axial	1 kHz 550 pF	30 V	125 °C	-55 °C	41 V	1	120 A	Through Hole	21 V	36.9 V	0.4 J	45.1 V
KYOCERA AVX VA100003D100DL	Axial	4700 pF	3.3 V	125 °C	-55 °C	5 V	1	150 A	Through Hole	2.3 V	4 V	0.4 J		6 V
