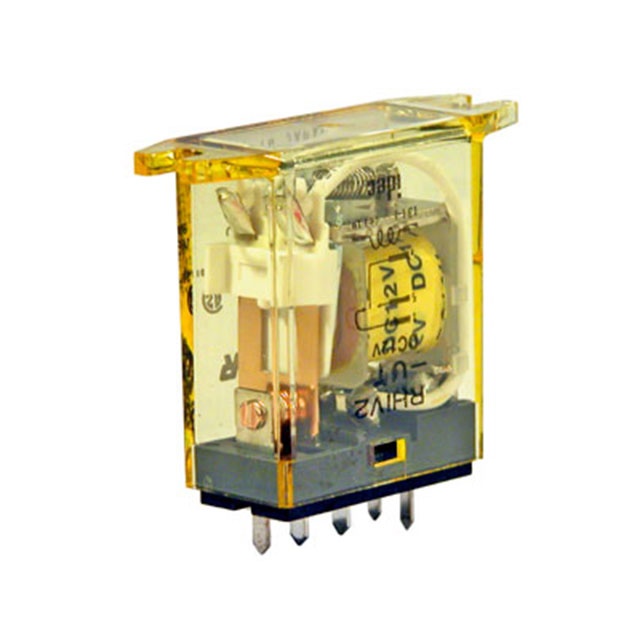

RH1V2-U Series
Manufacturer: IDEC
Beta
⌘K
RELAY PCB SPDT 10A 24VDC ROHS COMPLIANT: YES
| Part | Coil Resistance | Load - Max Switching | Release Time | Must Operate Voltage | Termination Style | Switching Voltage | Contact Material | Features | Coil Type | Operate Time | Coil Voltage | Coil Current | Mounting Type | Contact Rating (Current) | Relay Type | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 750 Ohms | 300 W 2400 VA | 20 ms | 19.2 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Diode Lighted Indicator | Non Latching | 20 ms | 24 VDC | 32 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 2.4 VDC |
IDEC | 188 Ohms | 300 W 2400 VA | 20 ms | 9.6 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 12 VDC | 64 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 1.2 VDC | |
IDEC | 8.1 kOhms | 300 W 2400 VA | 20 ms | 96 VAC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Test Button | Non Latching | 20 ms | 120 VAC | 7.5 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 36 VAC |
 IDEC | 2.66 kOhms | 300 W 2400 VA | 20 ms | 38.4 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 48 VDC | 18 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 4.8 VDC | |
IDEC | 26.71 kOhms | 300 W 2400 VA | 20 ms | 192 VAC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 240 VAC/DC | 4.3 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 72 VAC/DC | |
 IDEC | 47 Ohms | 300 W 2400 VA | 20 ms | 9.6 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 12 VDC | 64 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 1.2 VDC | |
IDEC | 188 Ohms | 300 W 2400 VA | 20 ms | 9.6 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Diode Lighted Indicator | Non Latching | 20 ms | 12 VDC | 64 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 1.2 VDC |
IDEC | 47 Ohms | 300 W 2400 VA | 20 ms | 4.8 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 128 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 0.6 VDC | ||
IDEC | 750 Ohms | 300 W 2400 VA | 20 ms | 19.2 VDC | PC Pin | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 20 ms | 24 VDC | 32 mA | Through Hole | 10 A | General Purpose | CE CSA cURus TUV | -25 °C | 70 °C | SPDT (1 Form C) | 2.4 VDC |
