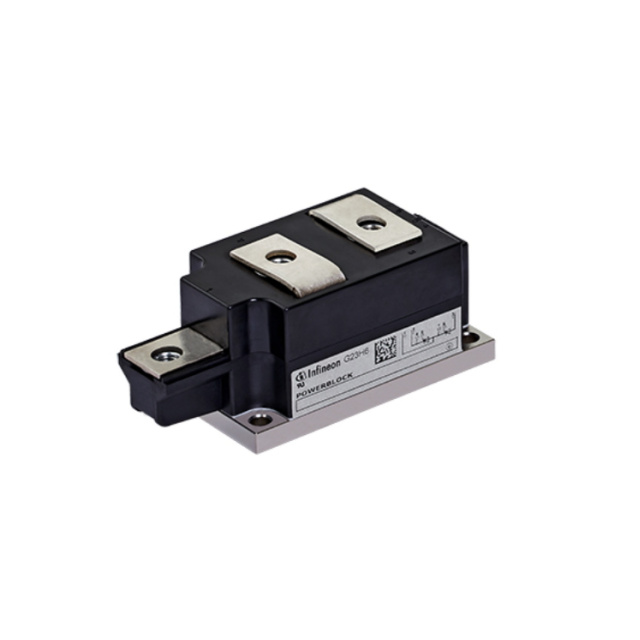

TT250N Series

Manufacturer: INFINEON

Catalog

SCR MODULE 1.2KV MODULE

Part	Current - Gate Trigger (Igt) (Max) [Max]	Structure	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Off State	Mounting Type	Voltage - Gate Trigger (Vgt) (Max) [Max] [custom]	Current - Hold (Ih) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - On State (It (RMS)) (Max) [Max]
INFINEON TT250N12KOFHPSA1	200 mA	Series Connection - All SCRs	2 SCRs	250 A	8000 A	1.2 kV	Chassis Mount	2 V	300 mA	125 °C	-40 C	Module
INFINEON TT250N12KOFKHPSA1	200 mA	Series Connection - SCR/Diode	2 SCRs	250 A	8000 A	1.8 kV	Chassis Mount	2 V	300 mA	125 °C	-40 C	Module	410 A
