Encapsulated Power Supply 12V 50 Watt
Encapsulated Power Supply 12V 50 Watt
| Part | Number of Outputs | Current - Output (Max) [Max] | Standard Number | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Type | Efficiency | Features | Voltage - Output 1 | Package / Case | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Approval Agency | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TT Electronics/BI | 1 | 3.33 A | 60335-1 62368-1 | 47 mm | 74.2 mm | 23.1 mm | 0.91 in | 2.92 in | 1.85 in | Enclosed | 88 % | Universal Input | 15 V | 4-DIP Module | Through Hole | 90 VAC 127 VDC | 305 VAC 430 VDC | 50 W | CB CE cURus | Household Appliances ITE (Commercial) | |||||
TT Electronics/BI | 1 | 2.083 A | 60335-1 62368-1 | 47 mm | 74.2 mm | 23.1 mm | 0.91 in | 2.92 in | 1.85 in | Enclosed | 88 % | Universal Input | 24 V | 4-DIP Module | Through Hole | 90 VAC 127 VDC | 305 VAC 430 VDC | 50 W | CB CE cURus | Household Appliances ITE (Commercial) | |||||

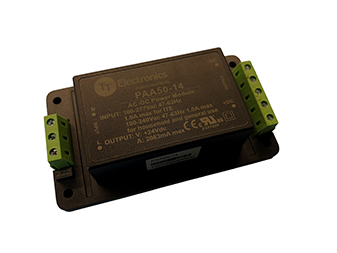

 TT Electronics/BI | 1 | 60335-1 60950-1 62368-1 | 111.8 mm | 64.8 mm | 28.7 mm | Enclosed | 88 % | DC Input Capable Universal Input | 24 V | Chassis Mount | 90 VAC 127 VDC | 305 VAC 430 VDC | 50 W | CB CE cURus | Household Appliances ITE (Commercial) | 4.4 " | 1.13 " | 2.55 " | 4000 V | 2.083 A | |||||
TT Electronics/BI | 1 | 4.167 A | 60335-1 62368-1 | 47 mm | 74.2 mm | 23.1 mm | 0.91 in | 2.92 in | 1.85 in | Enclosed | 89 % | Universal Input | 12 V | 4-DIP Module | Through Hole | 90 VAC 127 VDC | 305 VAC 430 VDC | 50 W | CB CE cURus | Household Appliances ITE (Commercial) | |||||
 TT Electronics/BI | 1 | 60335-1 60950-1 62368-1 | 111.8 mm | 64.8 mm | 28.7 mm | Enclosed | 88 % | DC Input Capable Universal Input | 15 V | Chassis Mount | 90 VAC 127 VDC | 305 VAC 430 VDC | 50 W | CB CE cURus | Household Appliances ITE (Commercial) | 4.4 " | 1.13 " | 2.55 " | 4000 V | 3.33 A |
